Brick, paver and blockmaking machines
We design, build and install fly ash brick presses, M50 paver lines, CSEB and AAC block plants at our works in Igatpuri, Nashik.
- Designing and building machines
- Since 2014
- Manual, semi-automatic and automatic
- 25+ models
- Paver machines for government tenders
- M50 grade
- Supply and installation
- Pan-India
Machines
Nine standard PLC-controlled machines, from the 2-cavity PM16 to the 150 tonf PMA32 M50. Every one ships with a standard plant layout, and we match the model to your output and site.
Fly ash brick machines
PM16PM16 Fly Ash Brick Making Machine
2-cavity entry model, 5,000 to 6,000 bricks per shift
- Bricks per shift
- 5,000–6,000
- Press force
- 30 tonf
- Power required
- 24–25 HP
Fly ash brick machines
PM24PM24 Fly Ash Brick Making Machine
3-cavity mould, 8,000 to 10,000 bricks per shift
- Bricks per shift
- 8,000–10,000
- Press force
- 45 tonf
- Power required
- 27 HP
Fly ash brick machines
PM32PM32 Fly Ash Brick Making Machine
4-cavity mould, 10,000 to 12,000 bricks per shift
- Bricks per shift
- 10,000–12,000
- Press force
- 60 tonf
- Power required
- 27 HP
Fly ash brick machines
PM40PM40 Fly Ash Brick Making Machine

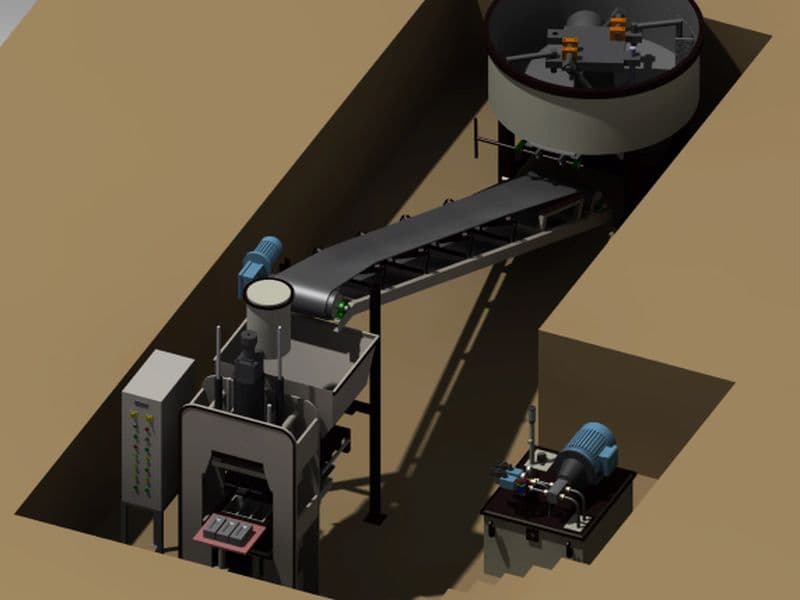

High-output line with box feeder on a 12 m pit
- Feeding
- Box feeder and conveyor
- Pit
- 12.0 × 5.2 m, 700 mm deep
- Shed
- 30 × 51 ft
- Feeding
- Box feeder and conveyor
- Pit
- 12.0 × 5.2 m, 700 mm deep
- Shed
- 30 × 51 ft
Brick and paver machines
PMA24PMA24 Fly Ash Brick and Paver Block Making Machine
Bricks and pavers on one press
- Bricks per shift
- 8,000–10,000
- Pavers per shift
- 3,000–4,000
- Press force
- 60–72 tonf
Brick and paver machines
PMA32PMA32 Fly Ash Brick and Paver Block Making Machine
4-cavity bricks or 3-cavity pavers
- Bricks per shift
- 10,000–12,000
- Pavers per shift
- 4,000–5,000
- Press force
- 60–72 tonf
Brick and M50 paver machinesM50 grade
PMA24 M50PMA24 M50 Fly Ash Brick and Higher Grade Paver Making Machine
100 tonf press for M50 grade pavers
- Bricks per shift
- 8,000–10,000
- Press force
- 100 tonf
- Power required
- 35 HP
Brick and M50 paver machinesM50 grade
PMA32 M50PMA32 M50 Fly Ash Brick and Higher Grade Paver Block Making Machine
150 tonf, with batching unit or as a double line
- Bricks per shift
- 10,000–12,000
- Press force
- 150 tonf
- Power required
- 40 HP
Also built to order
No standard sheet yet. Tell us your raw material and output and we'll quote.
- CSEB and interlocking soil block machines
- AAC block plants, 30 m³ and 108 m³
- Pan mixers and concrete mixers
- Manual and table-vibrator paver machines
- Tile making and sand filter machines
Soil to finished block in one line
How our automatic plant runs, in stills from its 3D walkthrough. Manual and semi-automatic machines follow the same steps with more hands on the line.

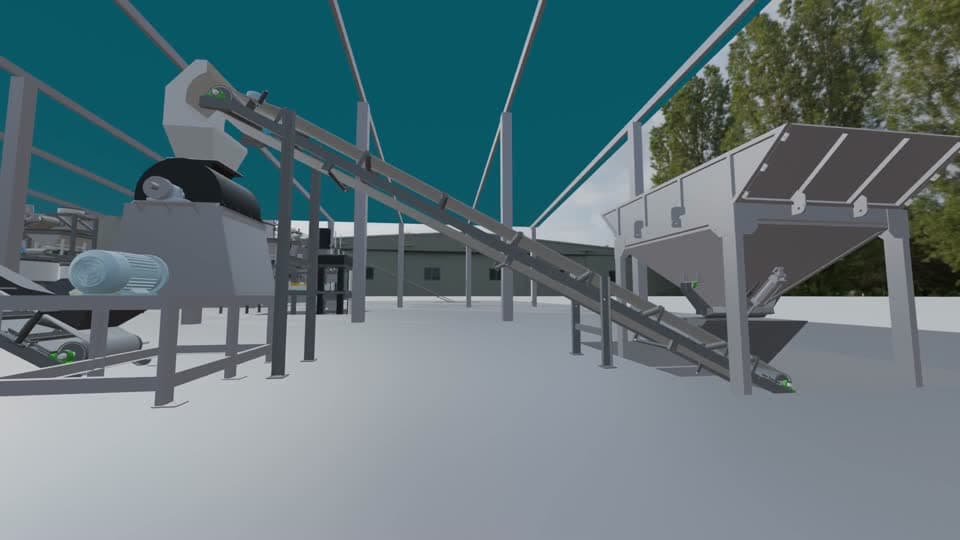

1Crush and screen
Soil or fly ash is crushed, screened and carried up to the feed hopper.

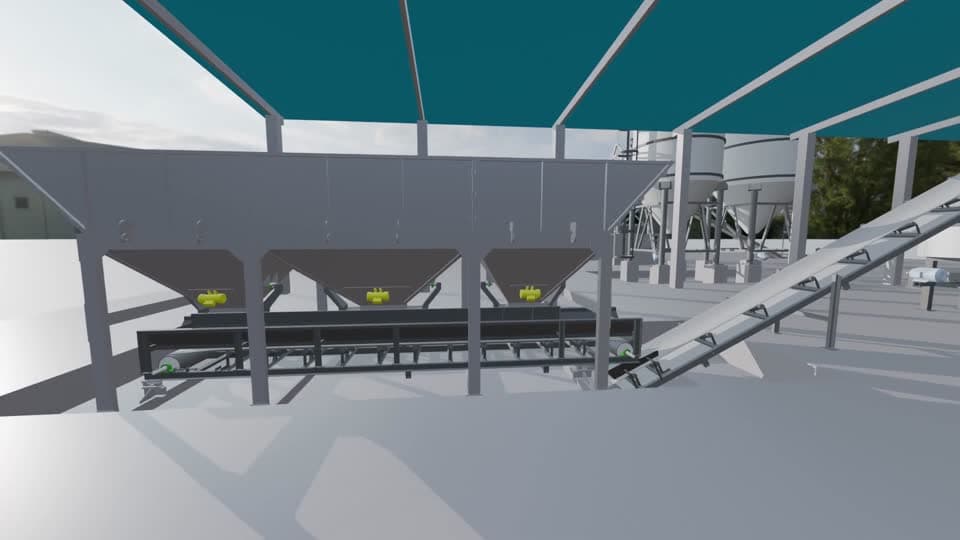

2Batch
A three-bin batcher meters each raw material in the right proportion.

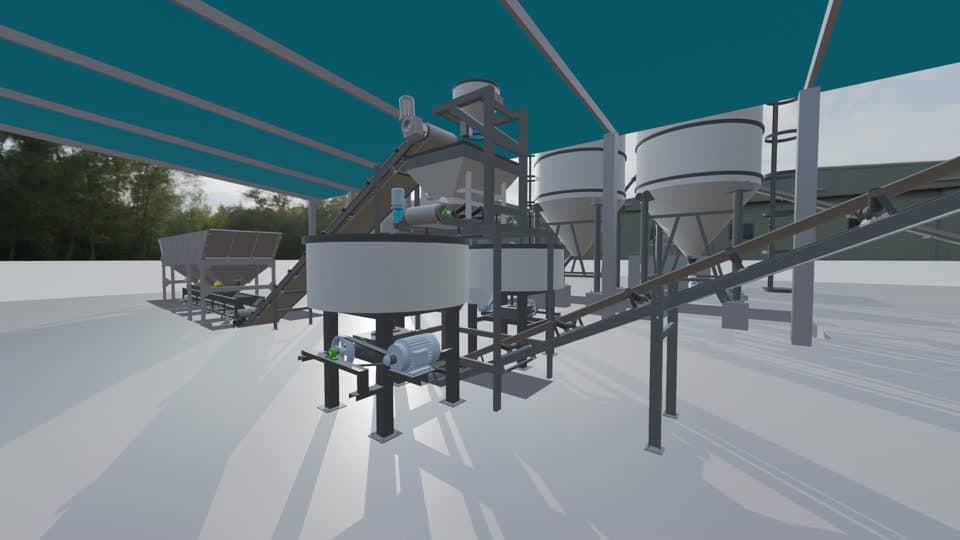

3Mix
The pan mixer blends the batch with water and cement from the silos.

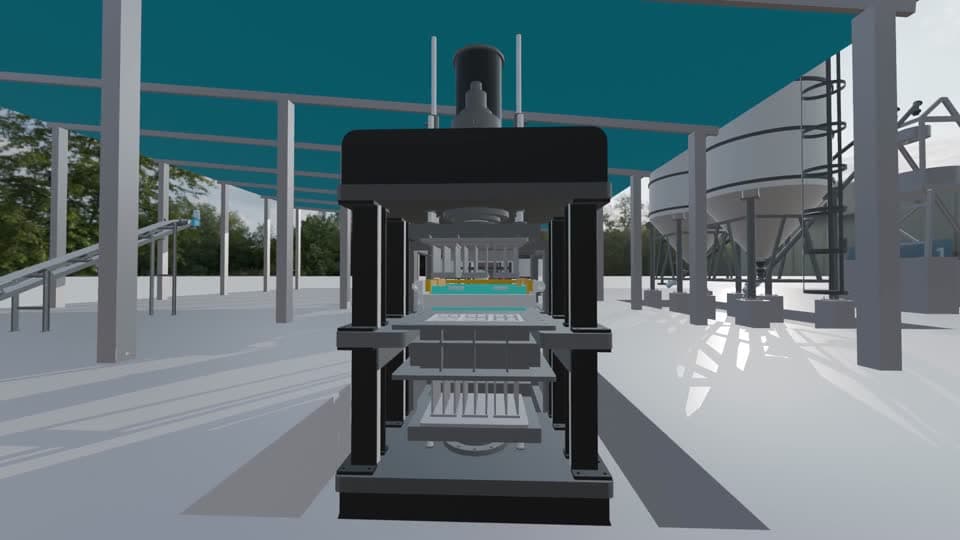

4Press
The hydraulic press compacts the mix into bricks, pavers or blocks.
Pressed bricks and blocks need no kiln. They are water-cured, which saves fuel and keeps the yard clean.
Designed and built in Igatpuri
Possible Machines has built block making machinery since 2014, and is known for its fly ash brick machines, CSEB machines, AAC block plants and M50 grade paver block machines.
Every machine is designed and fabricated at our works near Wadivarhe Dam, then supplied to brick and block makers, builders and contractors across India.
How we help
- Choosing the right machine for your raw material and output
- Moulds for the brick, paver and block sizes you want to sell
- Installation and operator training at your site
- Spare parts and service once you are in production
Possible Machines
Private Limited
- Works
- Gut No 115, Wadivarhe, Igatpuri, Nashik 422403
- Managing director
- Sachin Shitole
- Established
- 2014
- GSTIN
- 27AALCP3904E1ZH
- CIN
- U29305MH2020PTC345370
Tell us what you want to make
Share the block type and daily output you need. We'll come back with the right machine and a price.
