PM24 Fly Ash Brick Making Machine

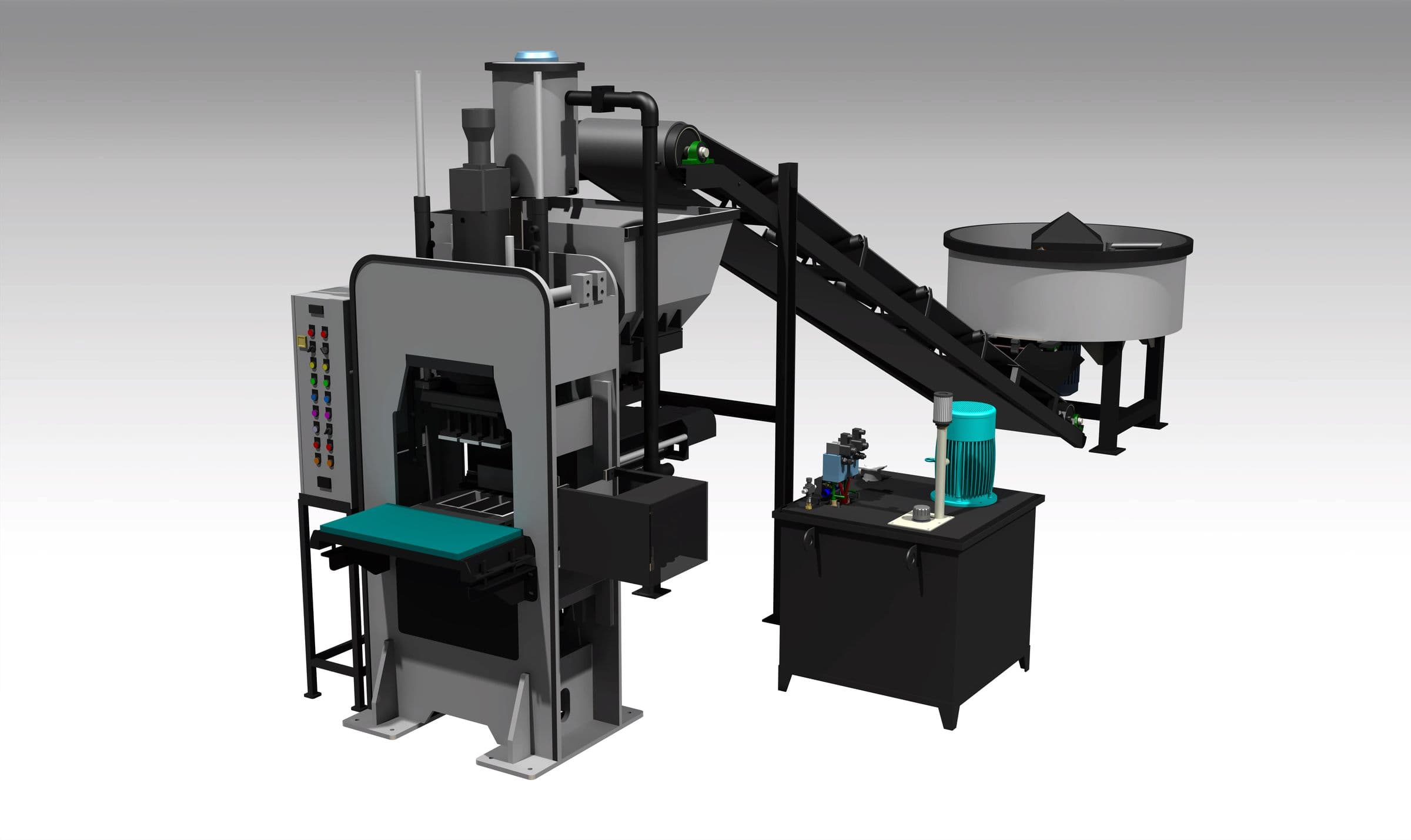

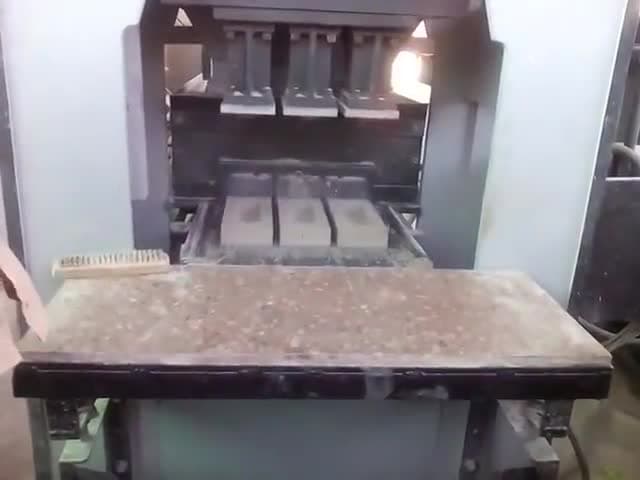

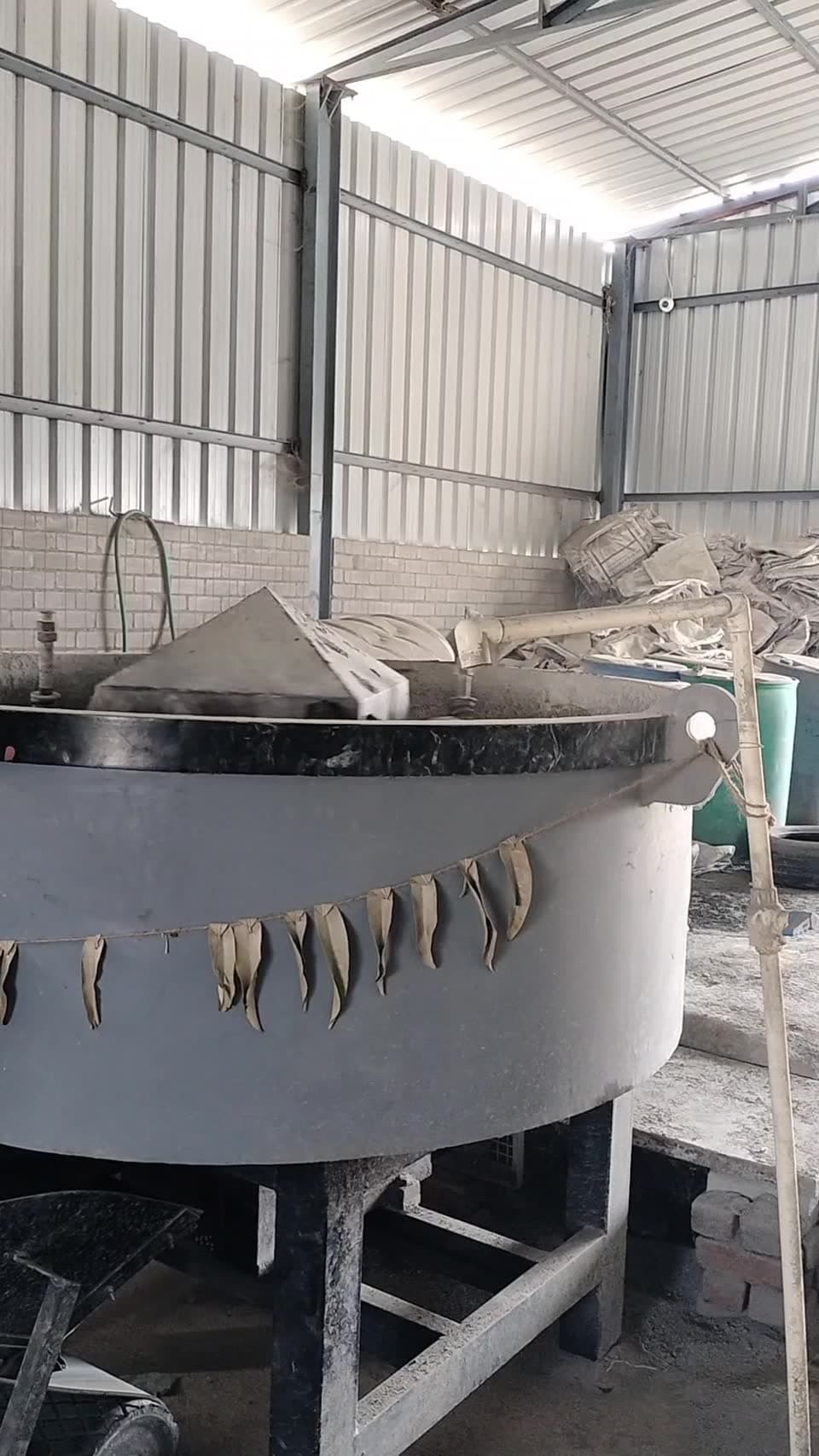

A 3-cavity mould and a 45 tonf press make 8,000 to 10,000 fly ash bricks per shift. The 350–400 kg pan mixer feeds the press by conveyor, and the whole line fits a 30 × 40 ft shed.
- Bricks per shift
- 8,000–10,000
- Press force
- 45 tonf
- Power required
- 27 HP
- Manpower
- 5–6
Specification
- Bricks per shift
- 8,000–10,000
- Press force
- 45 tonf
- Power required
- 27 HP
- Brick mould
- 9 × 4 × 3 in, 3 cavity
- Power pack
- 12.5 HP
- Pan mixer
- 350–400 kg
- Manpower
- 5–6
- Shed (minimum)
- 40 × 30 × 18 ft high
- Pit
- 8.6 × 5.0 m, 700 mm deep
What's included
- Main machineQty 1
- Programmed PLC control panelQty 1
- Mould 9 × 4 × 3 in, 3 cavityQty 1
- Power pack 12.5 HPQty 1
- Conveyor beltQty 1
- Pan mixer 350–400 kgQty 1
- Hydraulic pallet trolleyQty 1
Plus the standard plant layout for your site.
You arrange
- Civil work
- All electrical work
- All plumbing work
- Raw material, hydraulic oil, and an air compressor if required
- GST, transport, loading and unloading of the machinery
- Extra training
- Food, travel and stay for our installation and maintenance team

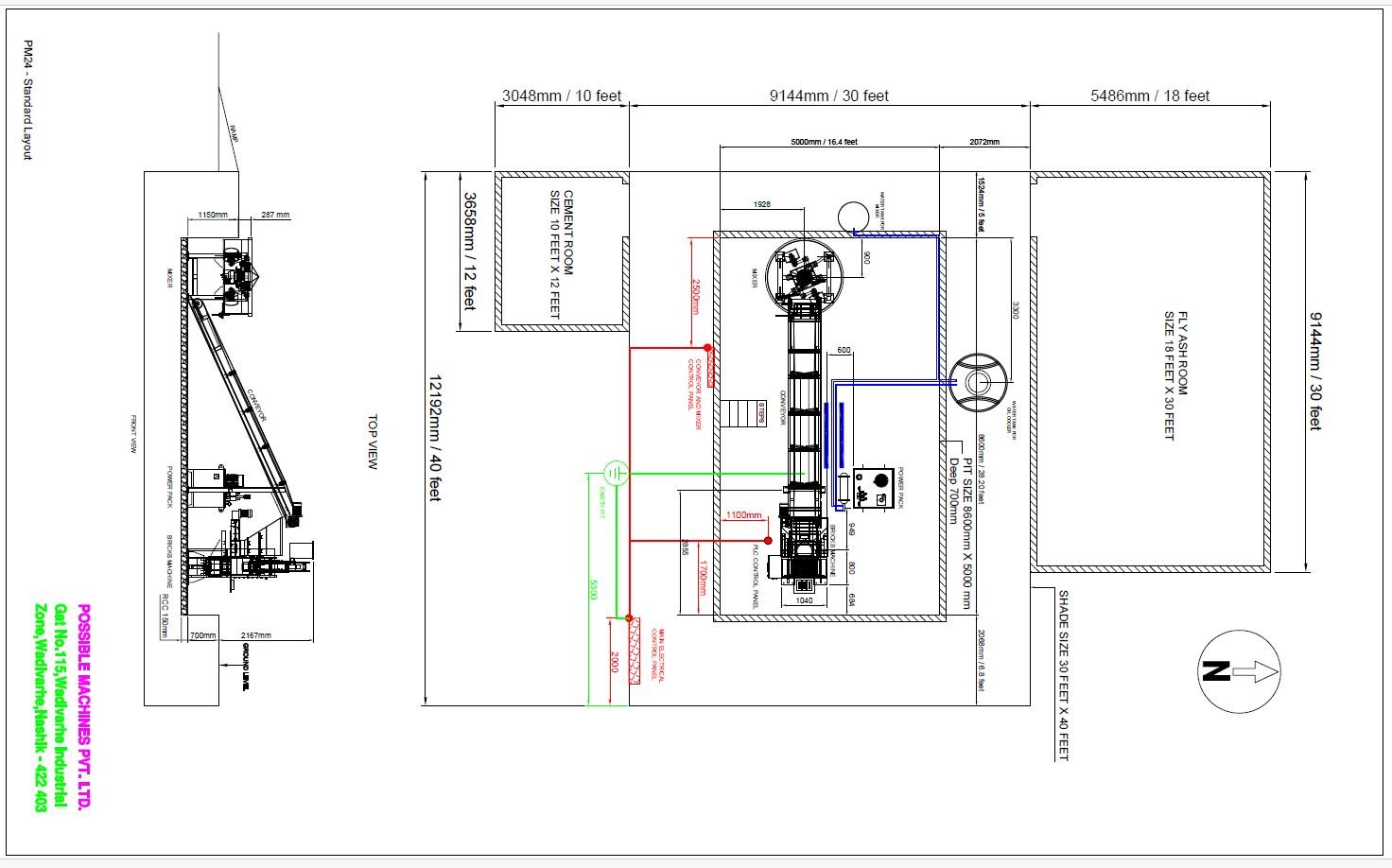

Standard plant layout

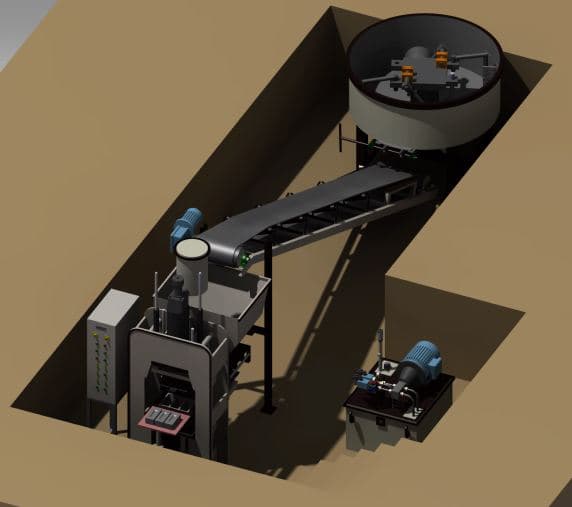

Every PM24 comes with this drawing. It sets the press in a pit beside the mixer, conveyor, power pack and control panels, with a cement room and a fly ash room alongside.
- Shed
- 30 × 40 ft
- Pit
- 8.6 × 5.0 m, 700 mm deep
- Cement room
- 10 × 12 ft
- Fly ash room
- 18 × 30 ft
See the PM24 running

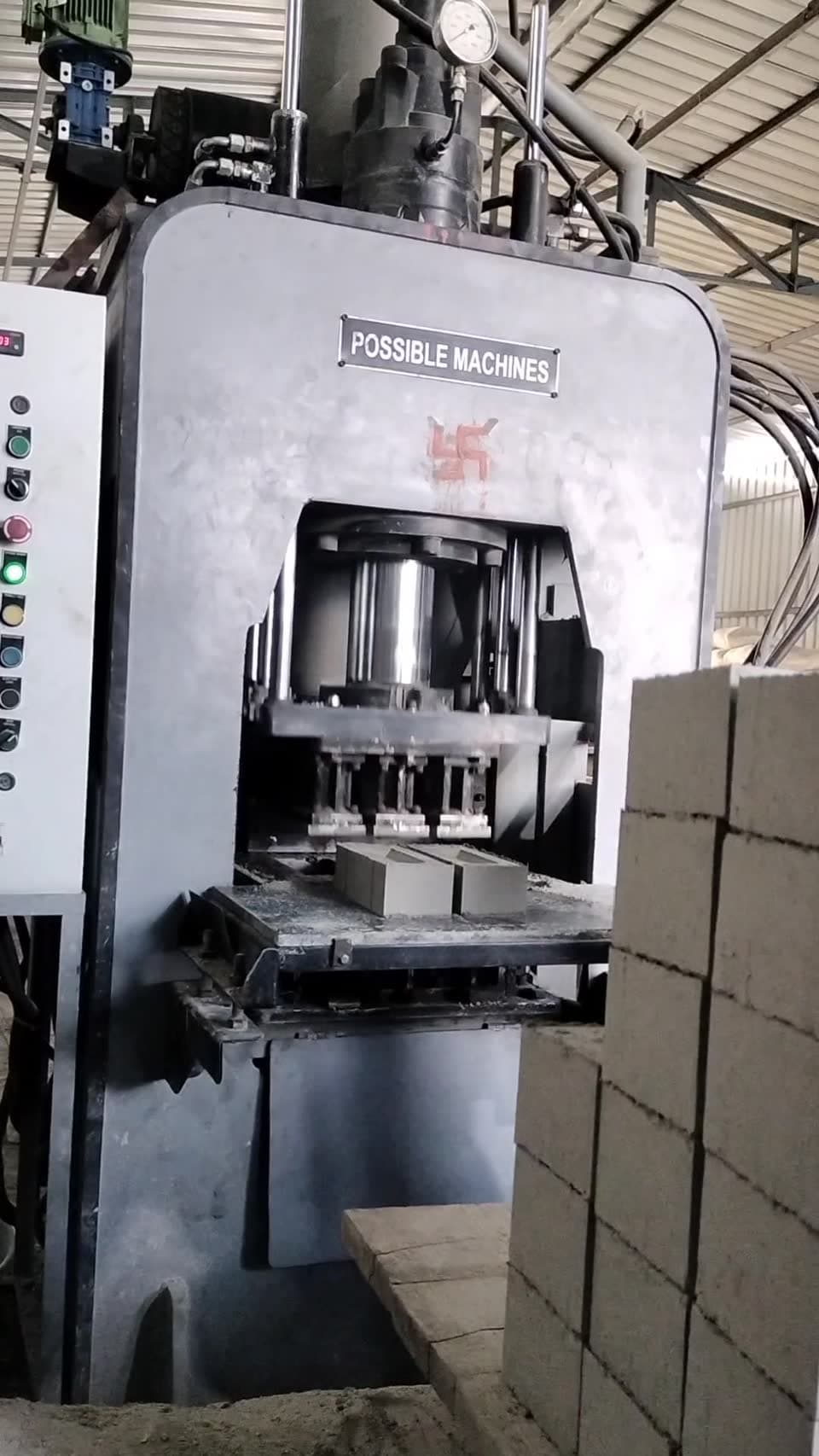

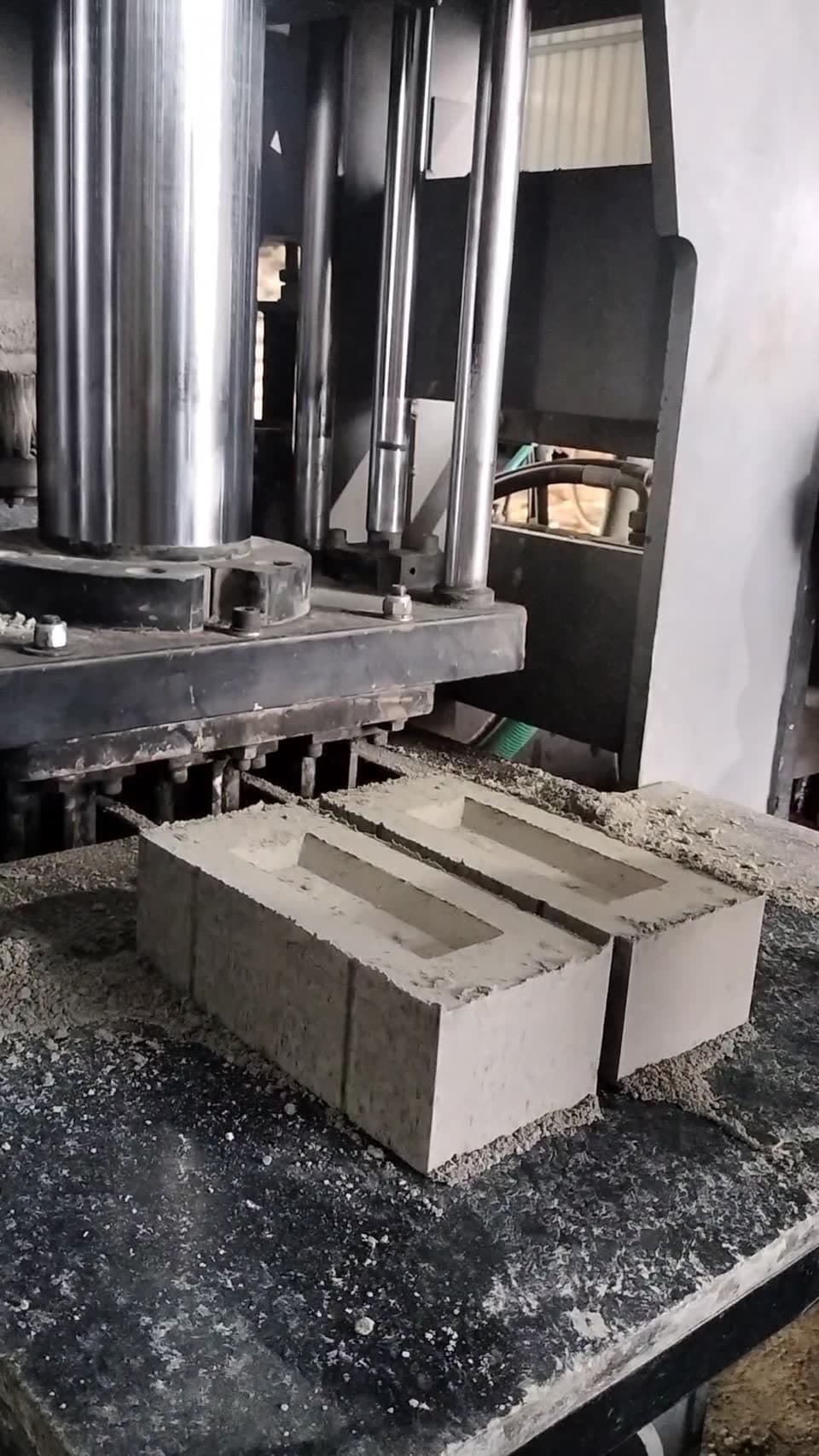

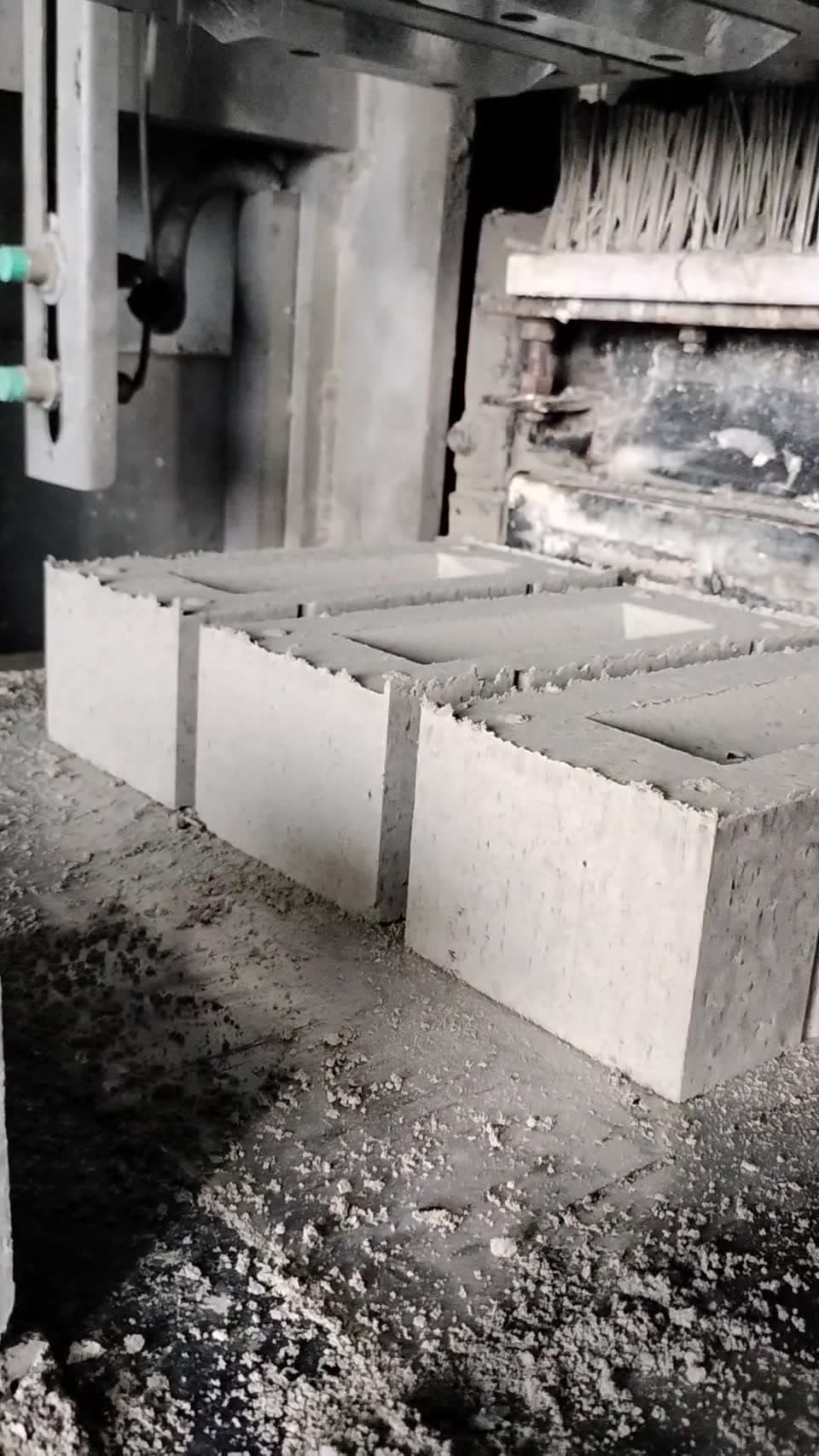

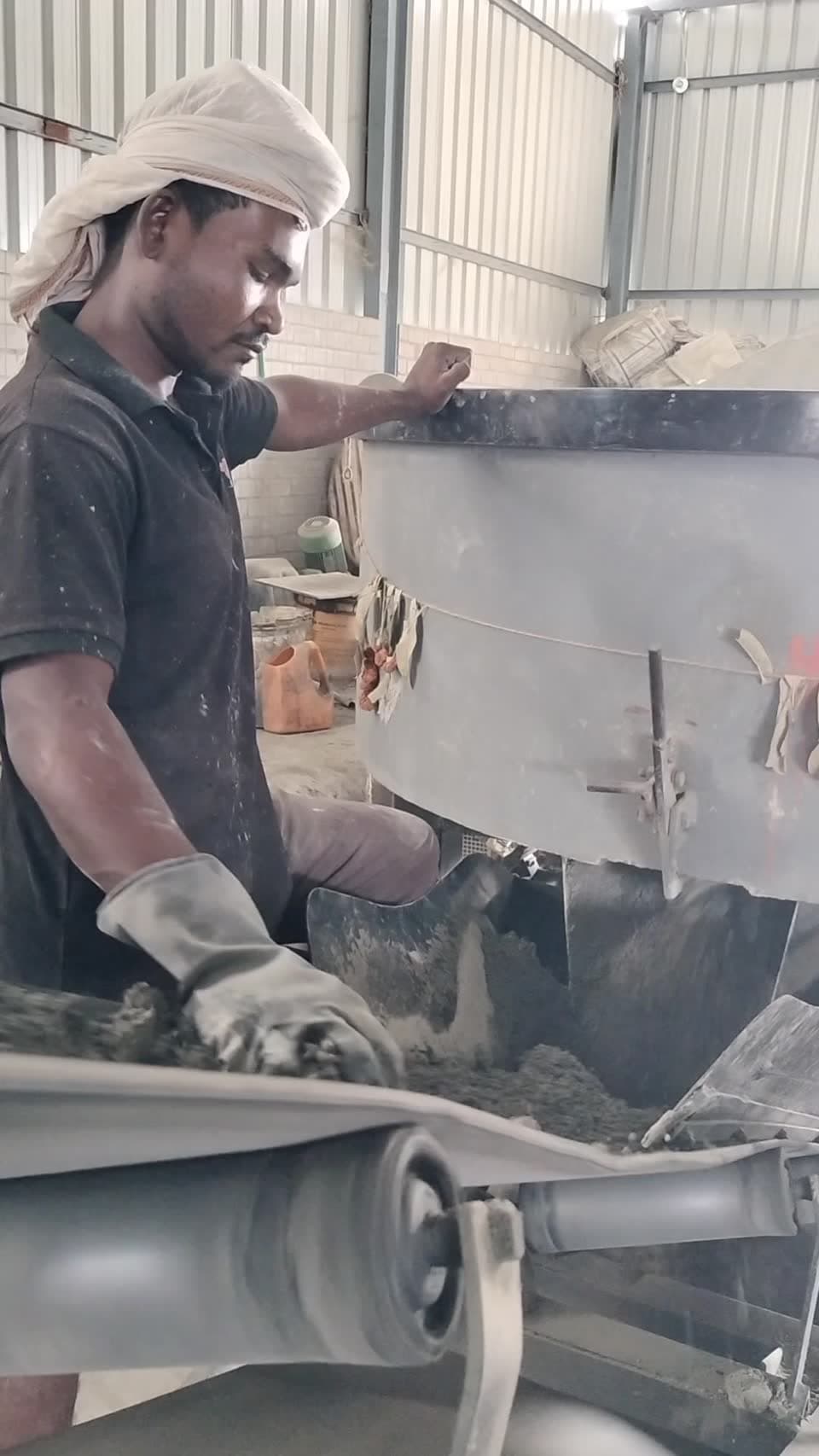

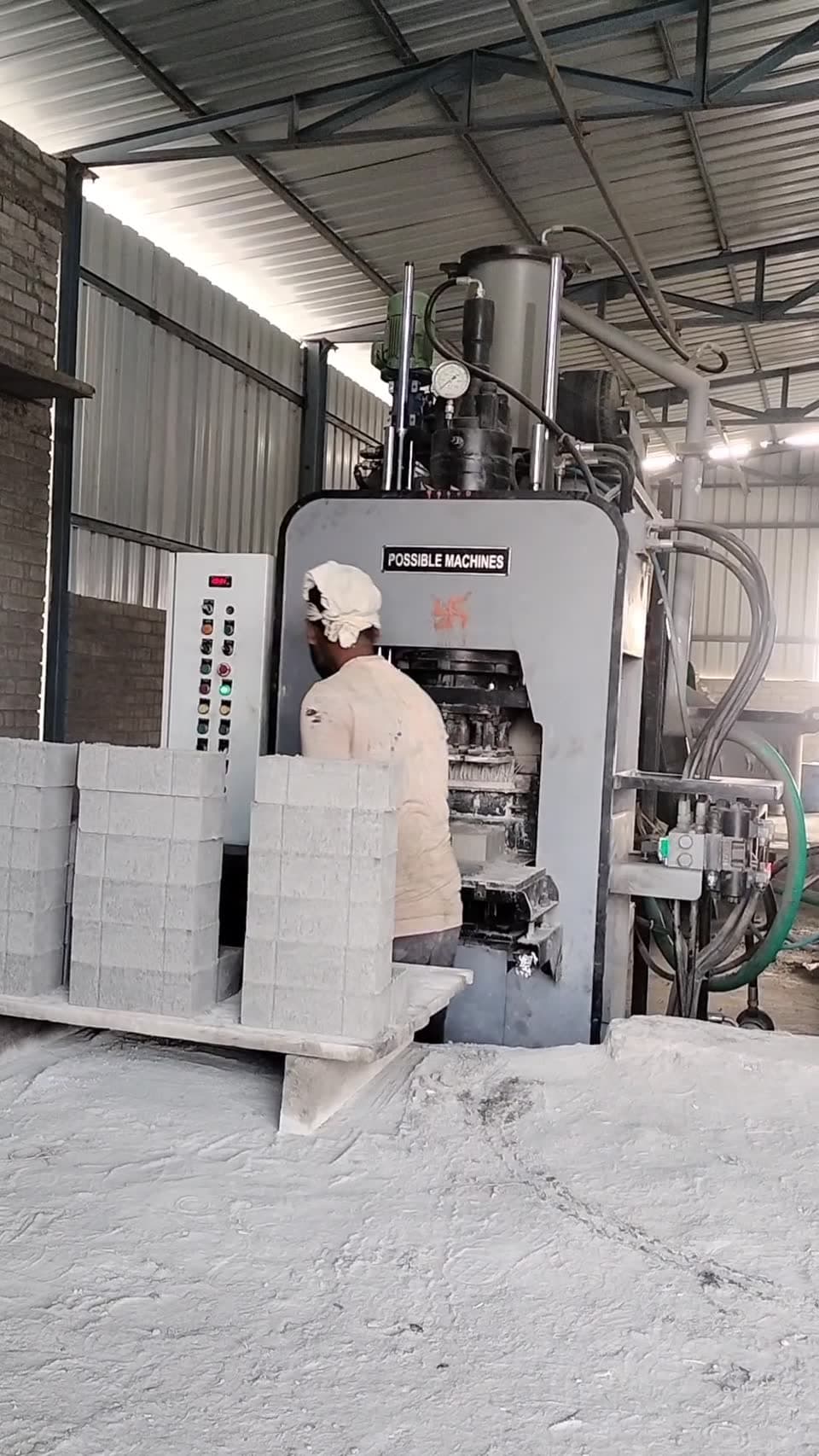

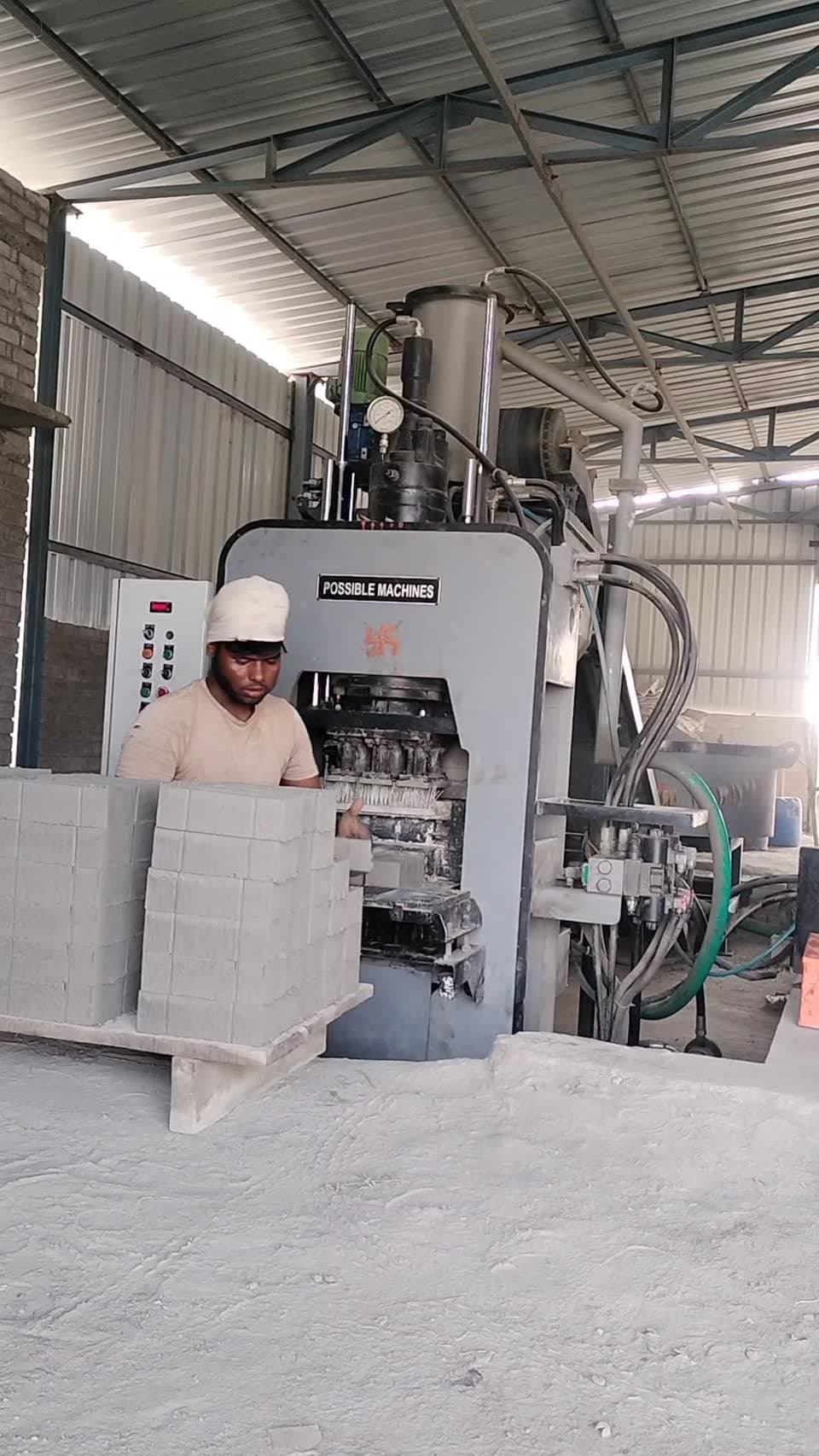

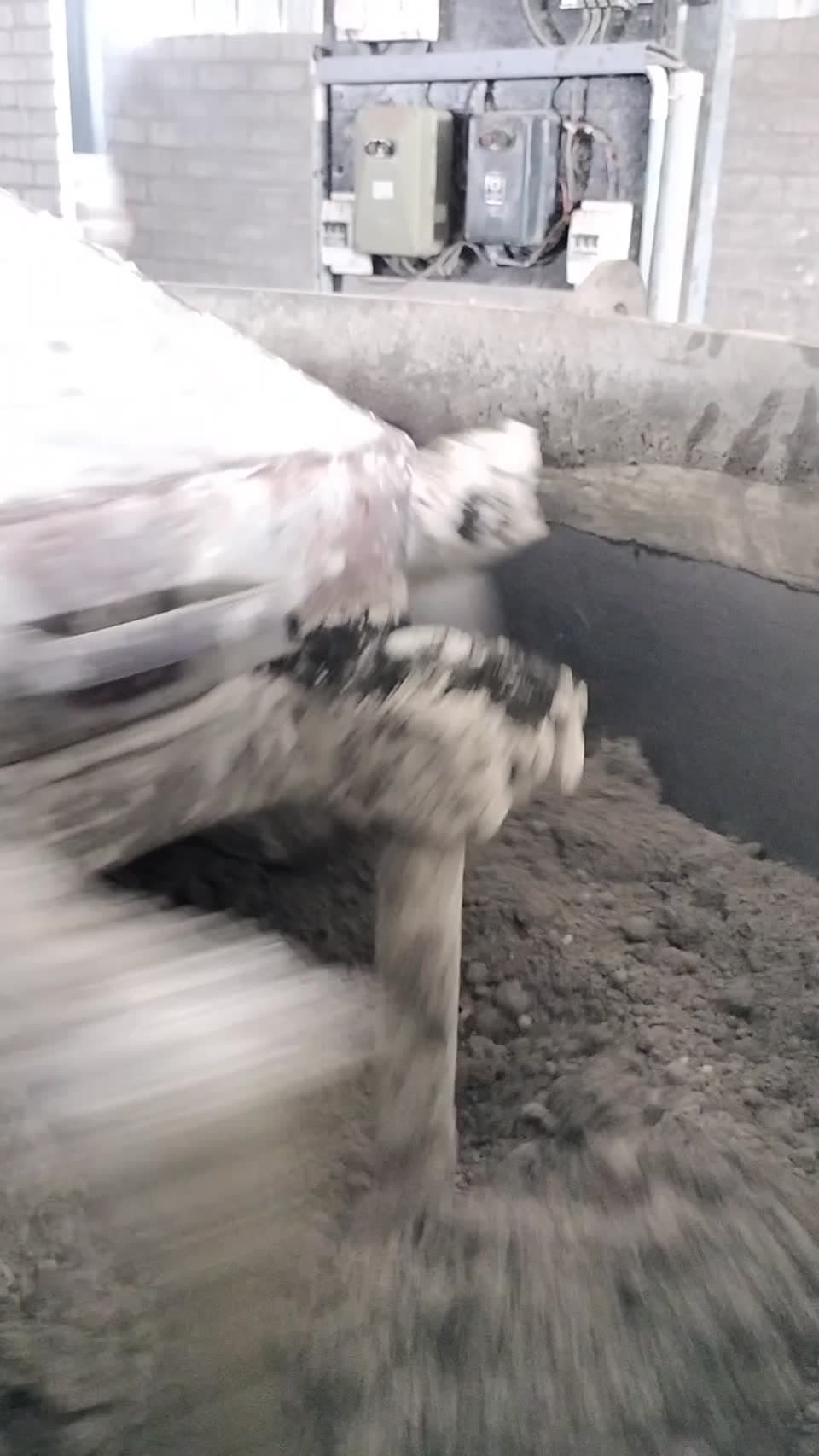

How the PM24 is run, step by step
Short clips filmed on the shop floor, in the order the crew works.
Gallery
Compare the range
| Model | Bricks per shift | Pavers per shift | Press force | Power required |
|---|---|---|---|---|
| PM16 | 5,000–6,000 | No | 30 tonf | 24–25 HP |
| PM24 | 8,000–10,000 | No | 45 tonf | 27 HP |
| PM32 | 10,000–12,000 | No | 60 tonf | 27 HP |
| PM40 | On request | No | On request | On request |
| PM48 | On request | No | On request | On request |
| PMA24 | 8,000–10,000 | 3,000–4,000 | 60–72 tonf | 27 HP |
| PMA32 | 10,000–12,000 | 4,000–5,000 | 60–72 tonf | 27 HP |
| PMA24 M50 | 8,000–10,000 | No | 100 tonf | 35 HP |
| PMA32 M50 | 10,000–12,000 | No | 150 tonf | 40 HP |
Questions about the PM24
How many bricks does the PM24 make?
8,000–10,000 fly ash bricks per shift with the 9 × 4 × 3 in, 3 cavity mould.
How much space does the PM24 need?
Plan for a shed of at least 40 × 30 × 18 ft high, a pit of 8.6 × 5.0 m, 700 mm deep, a 10 × 12 ft cement room and an 18 × 30 ft fly ash room. We send the standard layout drawing for your site.
What power does the PM24 need?
27 HP in total, which includes the 12.5 HP hydraulic power pack. Electrical work up to the machine is done by you.
How many people run it?
A crew of 5–6, working from the programmed PLC control panel.
What do I need to arrange?
Civil work; All electrical work; All plumbing work; Raw material, hydraulic oil, and an air compressor if required; GST, transport, loading and unloading of the machinery; Extra training; Food, travel and stay for our installation and maintenance team.
Can I see the PM24 working?
Watch the videos on this page, or visit our works at Gut No 115, Wadivarhe, Wadiwarhe Dam, Igatpuri, Nashik 422403. Call 080 4754 9587 to fix a time.
