PM16 Fly Ash Brick Making Machine
The smallest PM machine. A 2-cavity 9 × 4 × 3 in mould under a 30 tonf hydraulic press makes 5,000 to 6,000 fly ash bricks per shift, run by a crew of five or six from a PLC panel.
- Bricks per shift
- 5,000–6,000
- Press force
- 30 tonf
- Power required
- 24–25 HP
- Manpower
- 5–6
Specification
- Bricks per shift
- 5,000–6,000
- Press force
- 30 tonf
- Power required
- 24–25 HP
- Brick mould
- 9 × 4 × 3 in, 2 cavity
- Power pack
- 12.5 HP
- Pan mixer
- 250 kg
- Manpower
- 5–6
- Shed (minimum)
- 35 × 30 × 18 ft high
What's included
- Main machineQty 1
- Programmed PLC control panelQty 1
- Mould 9 × 4 × 3 in, 2 cavityQty 1
- Power pack 12.5 HPQty 1
- Conveyor beltQty 1
- Pan mixer 250 kgQty 1
- Hydraulic pallet trolleyQty 1

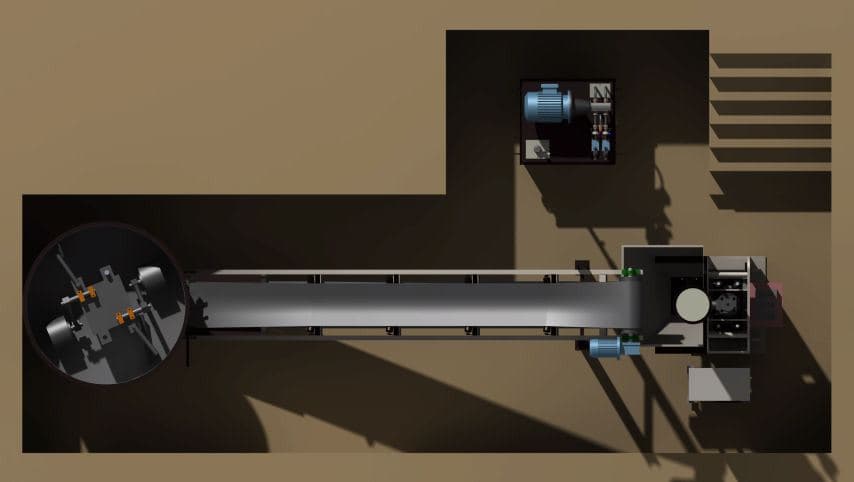

Plus the standard plant layout for your site.
You arrange
- Civil work
- All electrical work
- All plumbing work
- Raw material, hydraulic oil, and an air compressor if required
- GST, transport, loading and unloading of the machinery
- Extra training
- Food, travel and stay for our installation and maintenance team
Gallery
Compare the range
| Model | Bricks per shift | Pavers per shift | Press force | Power required |
|---|---|---|---|---|
| PM16 | 5,000–6,000 | No | 30 tonf | 24–25 HP |
| PM24 | 8,000–10,000 | No | 45 tonf | 27 HP |
| PM32 | 10,000–12,000 | No | 60 tonf | 27 HP |
| PM40 | On request | No | On request | On request |
| PM48 | On request | No | On request | On request |
| PMA24 | 8,000–10,000 | 3,000–4,000 | 60–72 tonf | 27 HP |
| PMA32 | 10,000–12,000 | 4,000–5,000 | 60–72 tonf | 27 HP |
| PMA24 M50 | 8,000–10,000 | No | 100 tonf | 35 HP |
| PMA32 M50 | 10,000–12,000 | No | 150 tonf | 40 HP |
Questions about the PM16
How many bricks does the PM16 make?
5,000–6,000 fly ash bricks per shift with the 9 × 4 × 3 in, 2 cavity mould.
How much space does the PM16 need?
Plan for a shed of at least 35 × 30 × 18 ft high. We send the standard layout drawing for your site.
What power does the PM16 need?
24–25 HP in total, which includes the 12.5 HP hydraulic power pack. Electrical work up to the machine is done by you.
How many people run it?
A crew of 5–6, working from the programmed PLC control panel.
What do I need to arrange?
Civil work; All electrical work; All plumbing work; Raw material, hydraulic oil, and an air compressor if required; GST, transport, loading and unloading of the machinery; Extra training; Food, travel and stay for our installation and maintenance team.
Can I see the PM16 working?
Visit our works at Gut No 115, Wadivarhe, Wadiwarhe Dam, Igatpuri, Nashik 422403. Call 080 4754 9587 to fix a time.
