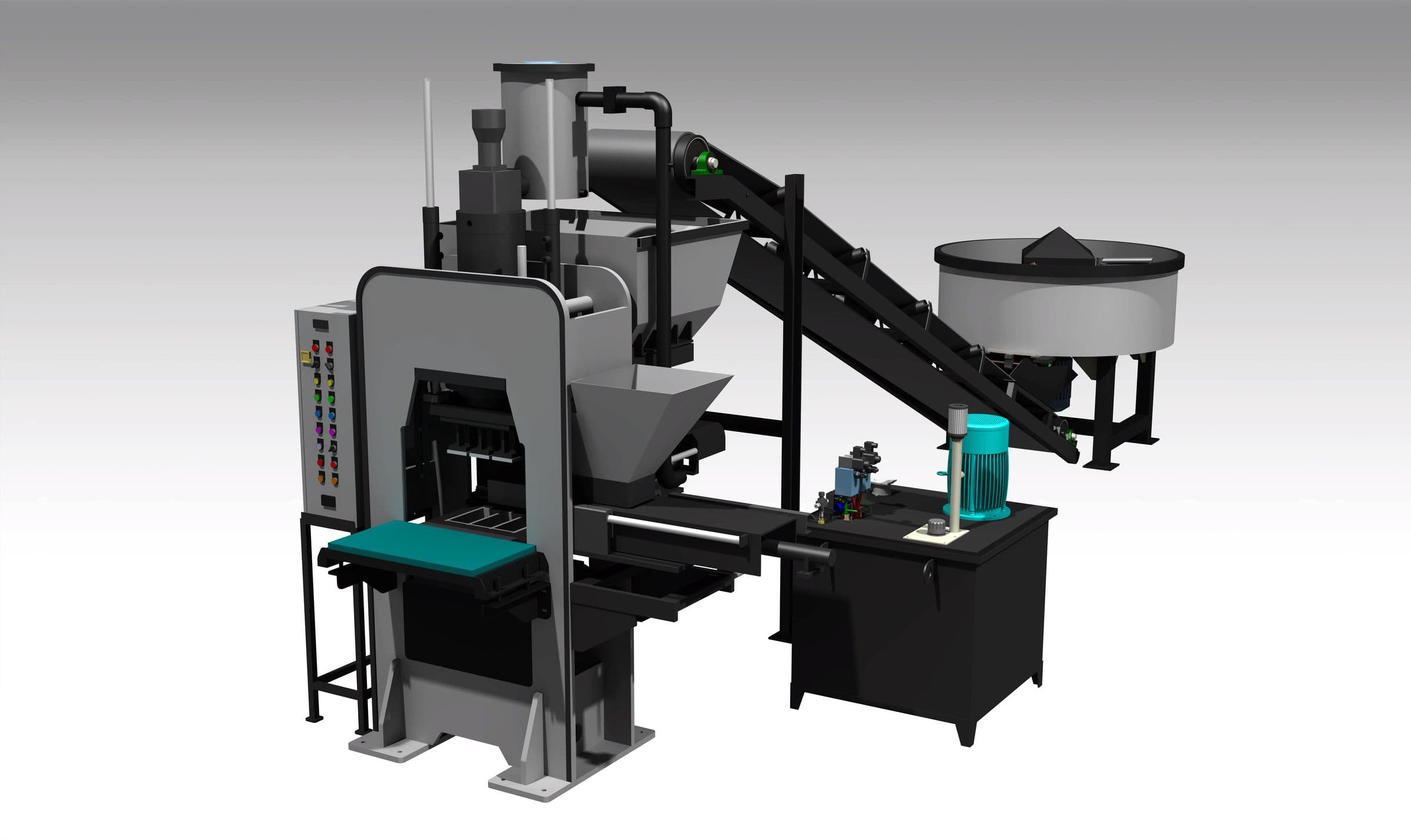

PMA24 Fly Ash Brick and Paver Block Making Machine

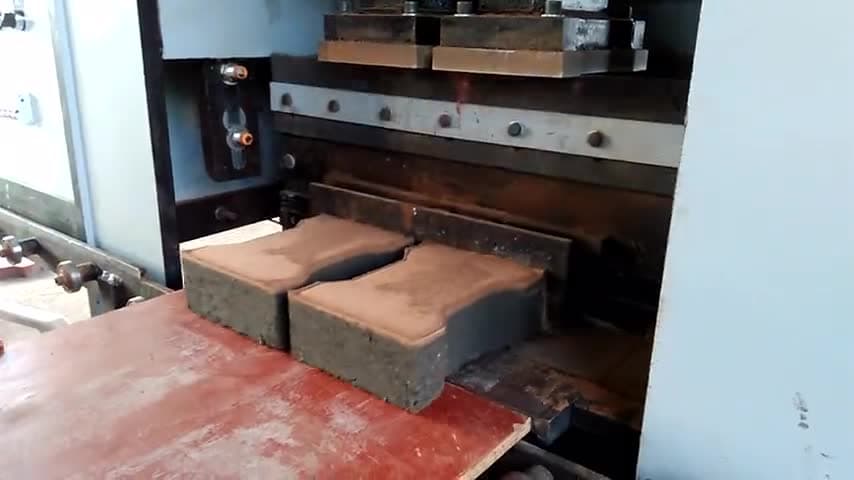

One machine for two products. Run the 3-cavity brick mould for 8,000 to 10,000 fly ash bricks per shift, or change to the 2-cavity paver mould for 3,000 to 4,000 paver blocks. The press delivers 60 to 72 tonf.
- Bricks per shift
- 8,000–10,000
- Pavers per shift
- 3,000–4,000
- Press force
- 60–72 tonf
- Power required
- 27 HP
Specification
- Bricks per shift
- 8,000–10,000
- Pavers per shift
- 3,000–4,000
- Press force
- 60–72 tonf
- Power required
- 27 HP
- Brick mould
- 9 × 4 × 3 in, 3 cavity
- Paver mould
- 2 cavity
- Power pack
- 12.5 HP
- Pan mixer
- 350–400 kg
- Manpower
- 5–6
- Shed (minimum)
- 40 × 30 × 18 ft high
- Pit
- 8.6 × 5.0 m, 700 mm deep
What's included
- Main machineQty 1
- Programmed PLC control panelQty 1
- Mould 9 × 4 × 3 in, 3 cavityQty 1
- Paver mould, 2 cavityQty 1
- Power pack 12.5 HPQty 1
- Conveyor beltQty 1
- Pan mixer 350–400 kgQty 1
- Hydraulic pallet trolleyQty 1
Plus the standard plant layout for your site.
You arrange
- Civil work
- All electrical work
- All plumbing work
- Raw material, hydraulic oil, and an air compressor if required
- GST, transport, loading and unloading of the machinery
- Extra training
- Food, travel and stay for our installation and maintenance team

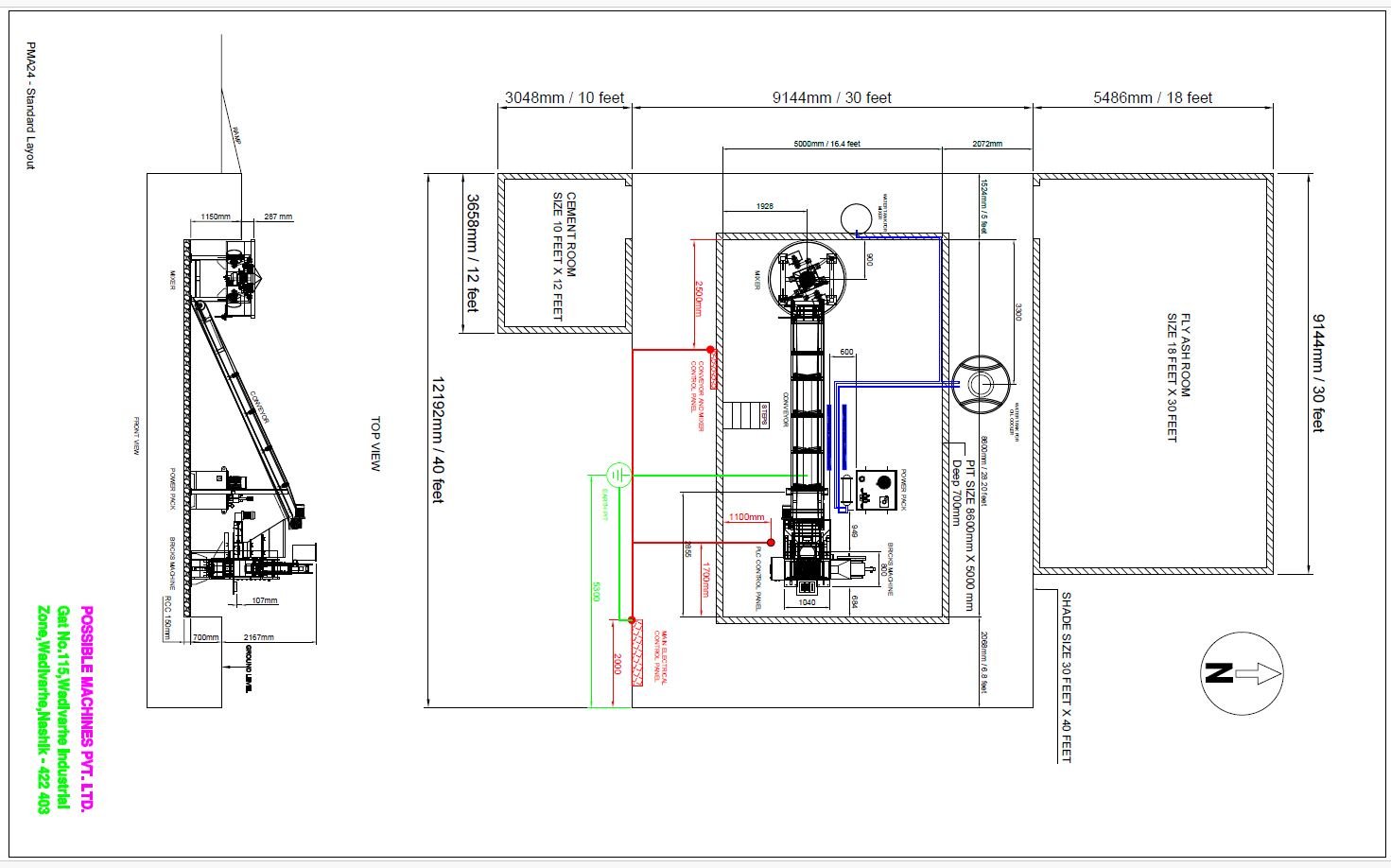

Standard plant layout
Every PMA24 comes with this drawing. It sets the press in a pit beside the mixer, conveyor, power pack and control panels, with a cement room and a fly ash room alongside.
- Shed
- 30 × 40 ft
- Pit
- 8.6 × 5.0 m, 700 mm deep
- Cement room
- 10 × 12 ft
- Fly ash room
- 18 × 30 ft

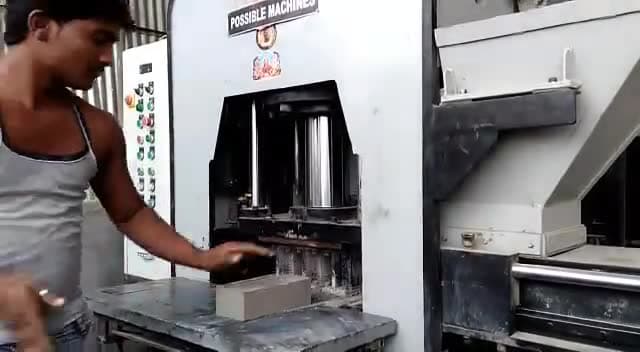

See the PMA24 running
Gallery
Compare the range
| Model | Bricks per shift | Pavers per shift | Press force | Power required |
|---|---|---|---|---|
| PM16 | 5,000–6,000 | No | 30 tonf | 24–25 HP |
| PM24 | 8,000–10,000 | No | 45 tonf | 27 HP |
| PM32 | 10,000–12,000 | No | 60 tonf | 27 HP |
| PM40 | On request | No | On request | On request |
| PM48 | On request | No | On request | On request |
| PMA24 | 8,000–10,000 | 3,000–4,000 | 60–72 tonf | 27 HP |
| PMA32 | 10,000–12,000 | 4,000–5,000 | 60–72 tonf | 27 HP |
| PMA24 M50 | 8,000–10,000 | No | 100 tonf | 35 HP |
| PMA32 M50 | 10,000–12,000 | No | 150 tonf | 40 HP |
Questions about the PMA24
How many bricks does the PMA24 make?
8,000–10,000 fly ash bricks per shift with the 9 × 4 × 3 in, 3 cavity mould, or 3,000–4,000 paver blocks with the paver mould.
How much space does the PMA24 need?
Plan for a shed of at least 40 × 30 × 18 ft high, a pit of 8.6 × 5.0 m, 700 mm deep, a 10 × 12 ft cement room and an 18 × 30 ft fly ash room. We send the standard layout drawing for your site.
What power does the PMA24 need?
27 HP in total, which includes the 12.5 HP hydraulic power pack. Electrical work up to the machine is done by you.
How many people run it?
A crew of 5–6, working from the programmed PLC control panel.
What do I need to arrange?
Civil work; All electrical work; All plumbing work; Raw material, hydraulic oil, and an air compressor if required; GST, transport, loading and unloading of the machinery; Extra training; Food, travel and stay for our installation and maintenance team.
Can I see the PMA24 working?
Watch the videos on this page, or visit our works at Gut No 115, Wadivarhe, Wadiwarhe Dam, Igatpuri, Nashik 422403. Call 080 4754 9587 to fix a time.
