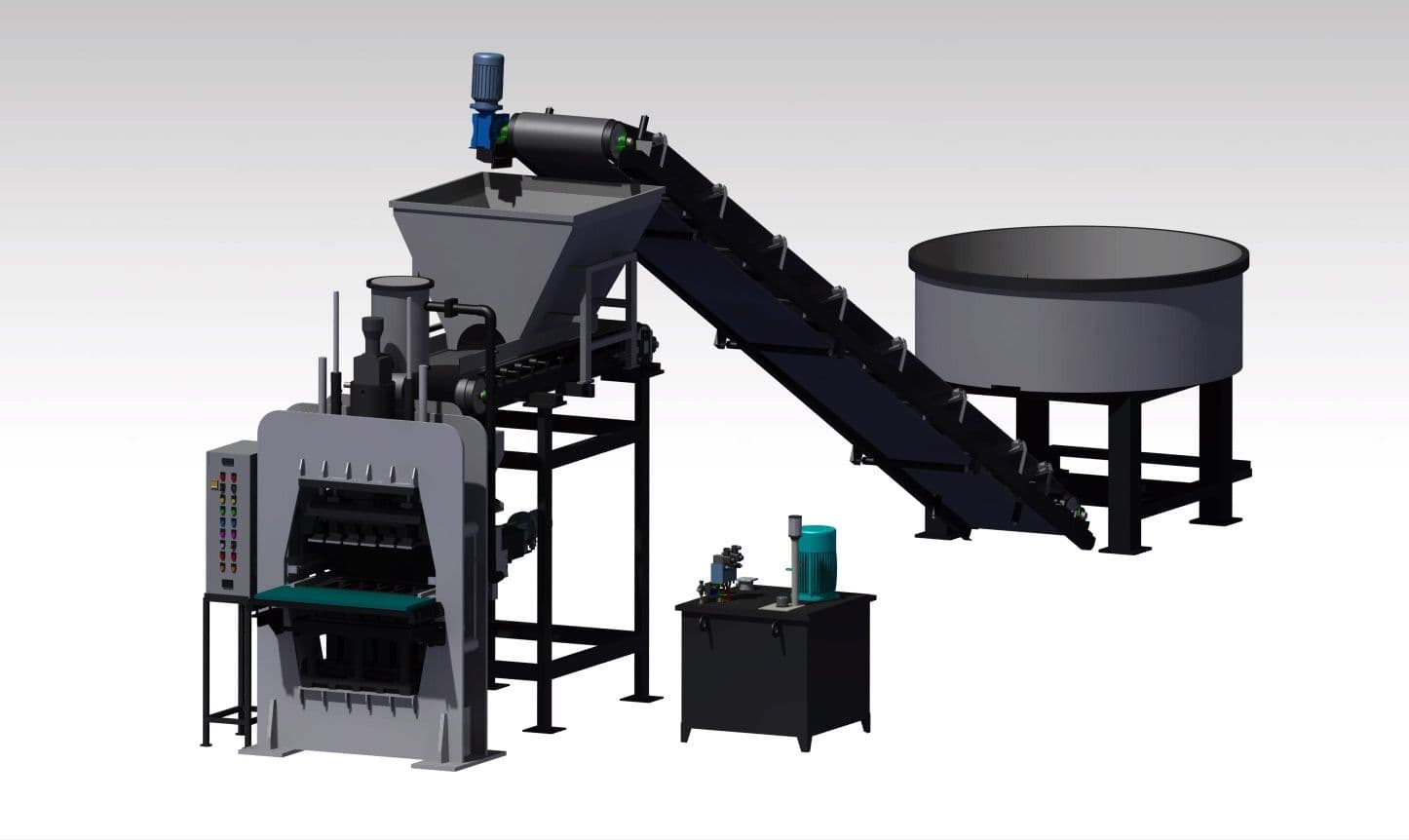

PM48 Fly Ash Brick Making Machine
The largest machine in the PM range, laid out like the PM40 in a 12 × 5.2 m pit inside a 30 × 51 ft shed. Output, press force and power are confirmed with your quotation.
- Feeding
- Box feeder and conveyor
- Pit
- 12.0 × 5.2 m, 700 mm deep
- Shed
- 30 × 51 ft
Specification
- Feeding
- Box feeder and conveyor
- Pit
- 12.0 × 5.2 m, 700 mm deep
- Shed
- 30 × 51 ft
What's included
The supply list comes with your quotation.
Plus the standard plant layout for your site.
You arrange
- Civil work
- All electrical work
- All plumbing work
- Raw material, hydraulic oil, and an air compressor if required
- GST, transport, loading and unloading of the machinery
- Extra training
- Food, travel and stay for our installation and maintenance team

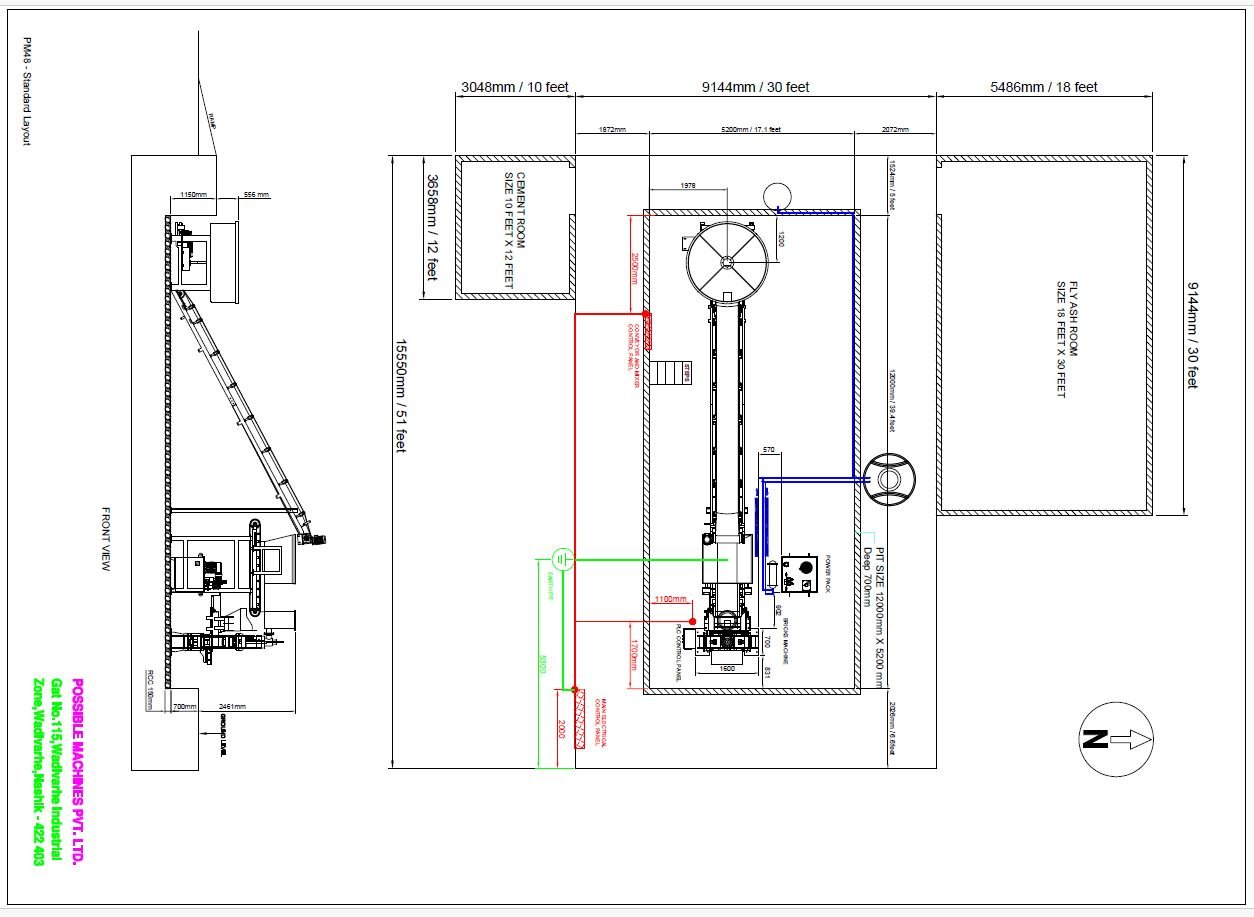

Standard plant layout
Every PM48 comes with this drawing. It sets the press in a pit beside the mixer, conveyor, power pack and control panels, with a cement room and a fly ash room alongside.
- Shed
- 30 × 51 ft
- Pit
- 12.0 × 5.2 m, 700 mm deep
- Cement room
- 10 × 12 ft
- Fly ash room
- 18 × 30 ft
Compare the range
| Model | Bricks per shift | Pavers per shift | Press force | Power required |
|---|---|---|---|---|
| PM16 | 5,000–6,000 | No | 30 tonf | 24–25 HP |
| PM24 | 8,000–10,000 | No | 45 tonf | 27 HP |
| PM32 | 10,000–12,000 | No | 60 tonf | 27 HP |
| PM40 | On request | No | On request | On request |
| PM48 | On request | No | On request | On request |
| PMA24 | 8,000–10,000 | 3,000–4,000 | 60–72 tonf | 27 HP |
| PMA32 | 10,000–12,000 | 4,000–5,000 | 60–72 tonf | 27 HP |
| PMA24 M50 | 8,000–10,000 | No | 100 tonf | 35 HP |
| PMA32 M50 | 10,000–12,000 | No | 150 tonf | 40 HP |
Questions about the PM48
How much space does the PM48 need?
Plan for a shed of at least 30 × 51 ft, a pit of 12.0 × 5.2 m, 700 mm deep, a 10 × 12 ft cement room and an 18 × 30 ft fly ash room. We send the standard layout drawing for your site.
What do I need to arrange?
Civil work; All electrical work; All plumbing work; Raw material, hydraulic oil, and an air compressor if required; GST, transport, loading and unloading of the machinery; Extra training; Food, travel and stay for our installation and maintenance team.
Can I see the PM48 working?
Visit our works at Gut No 115, Wadivarhe, Wadiwarhe Dam, Igatpuri, Nashik 422403. Call 080 4754 9587 to fix a time.
Tell us what you want to make
Share the block type and daily output you need. We'll come back with the right machine and a price.
