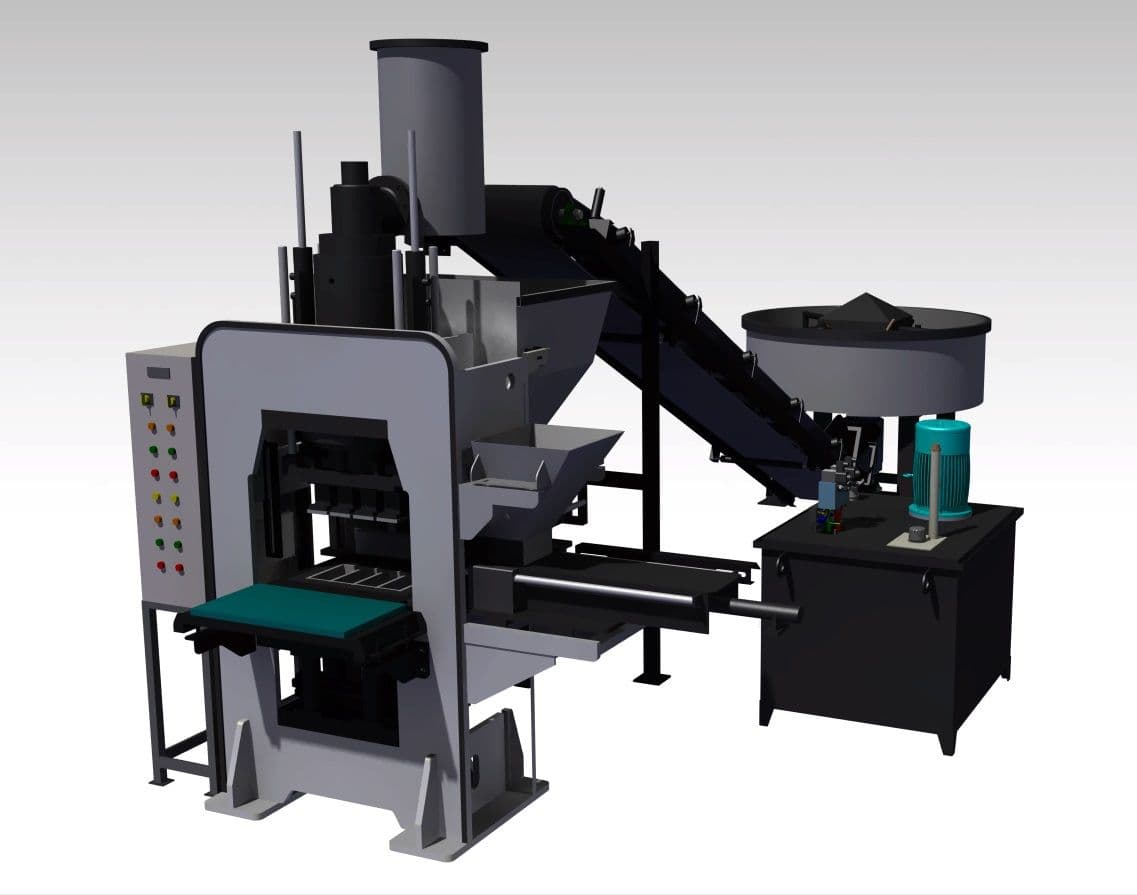

PMA32 M50 Fly Ash Brick and Higher Grade Paver Block Making Machine
M50 grade

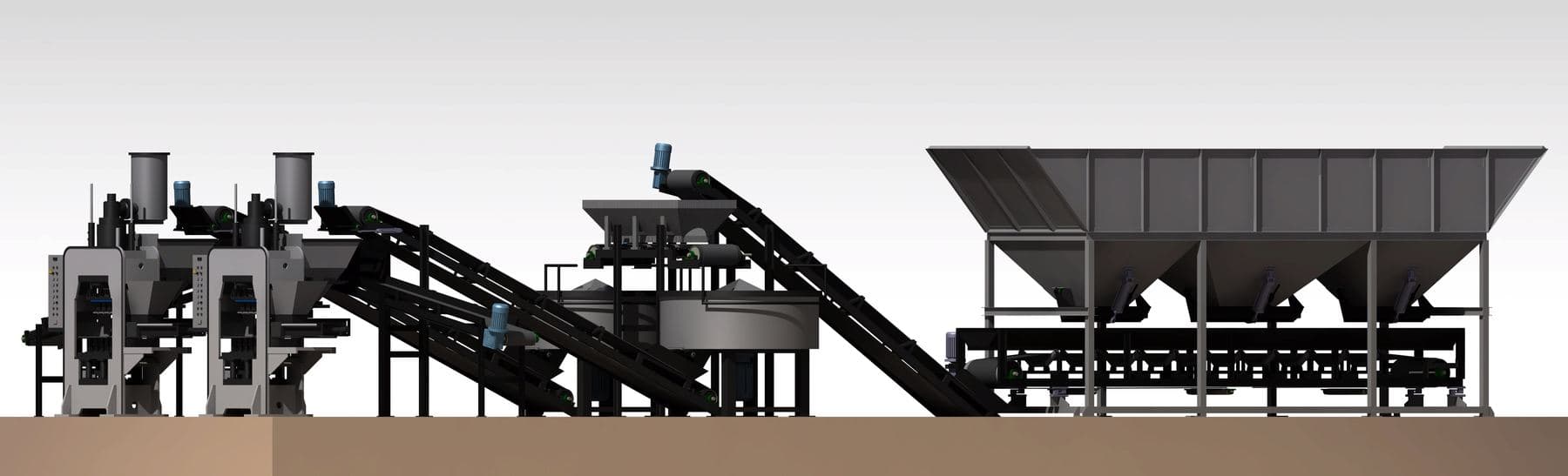

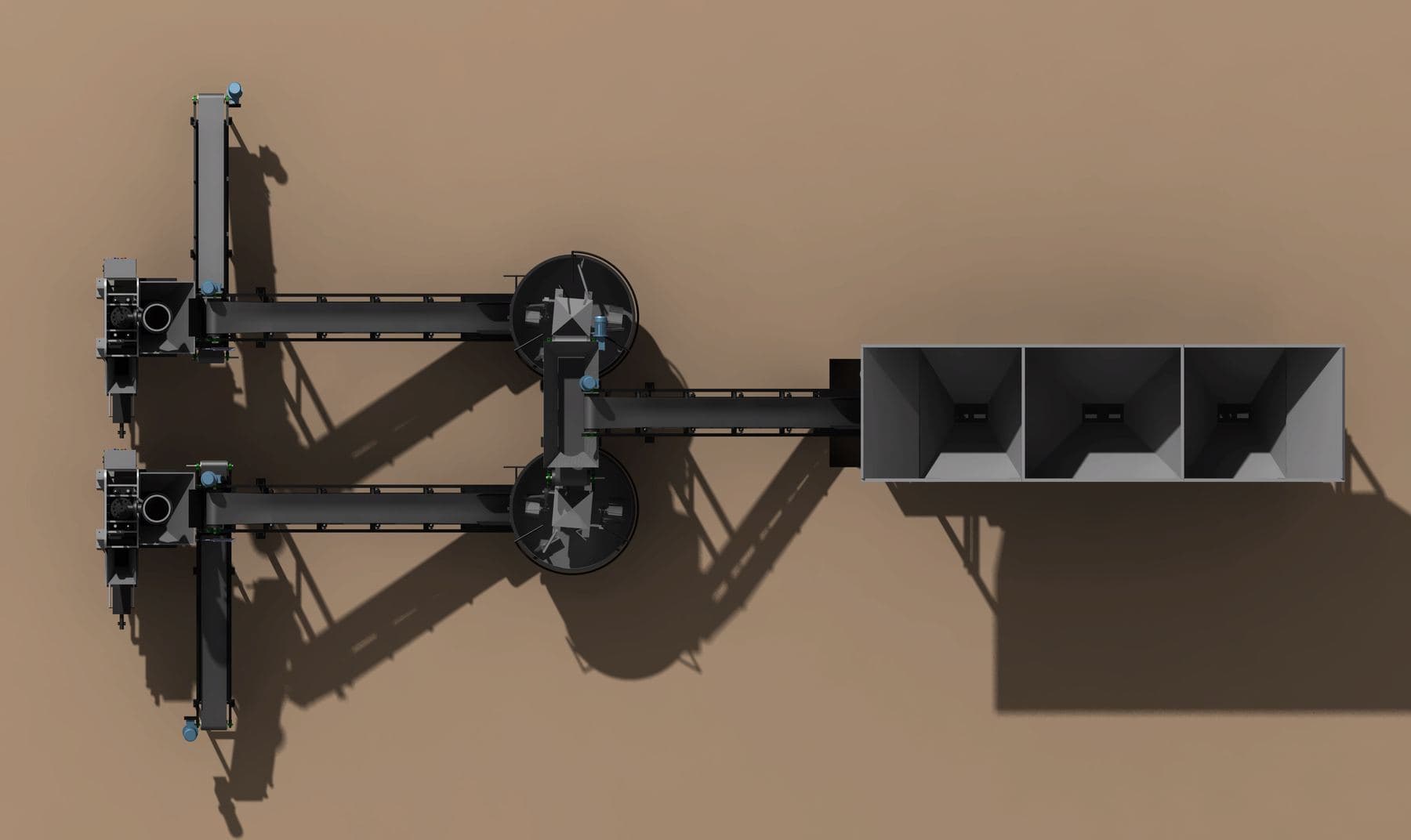

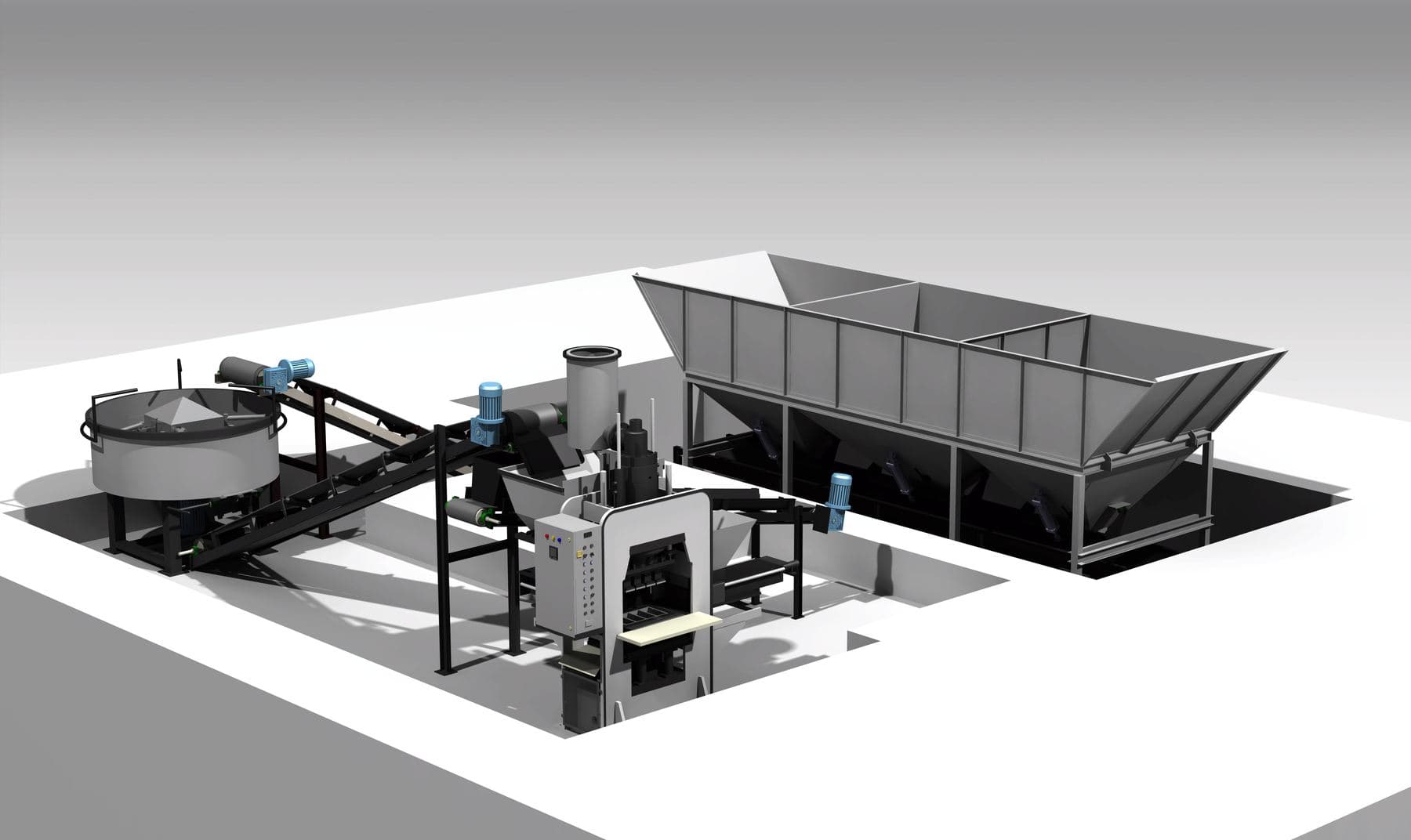

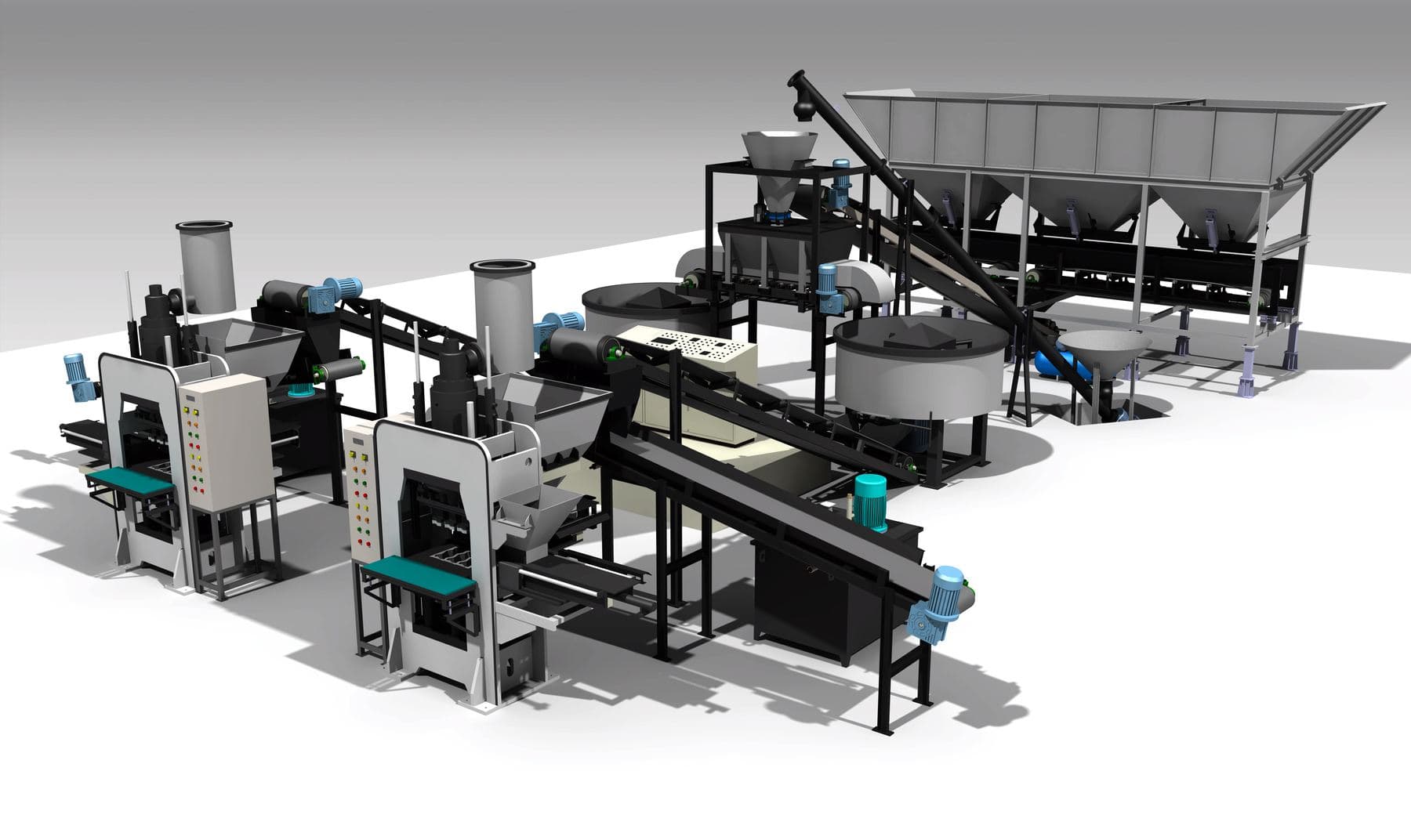

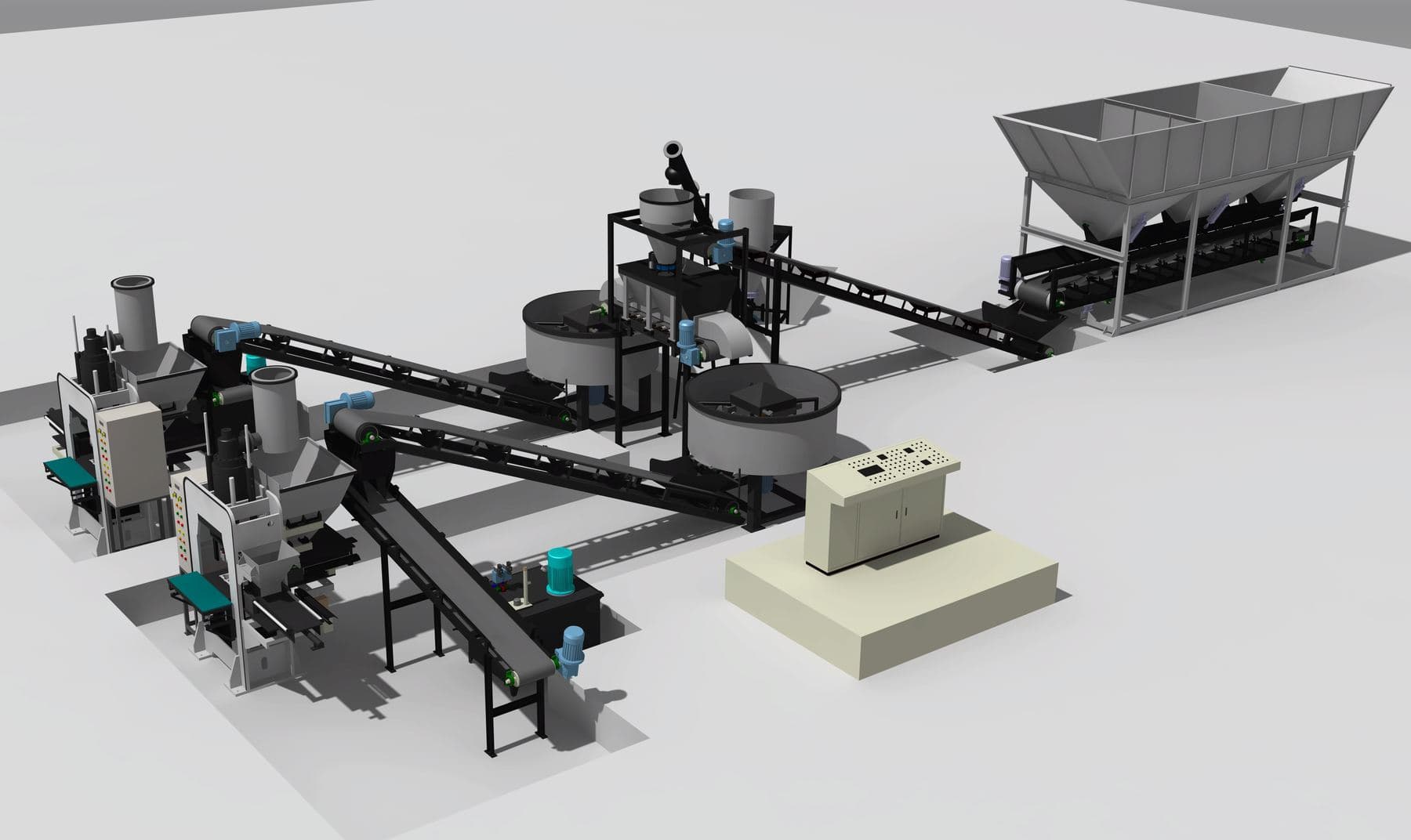

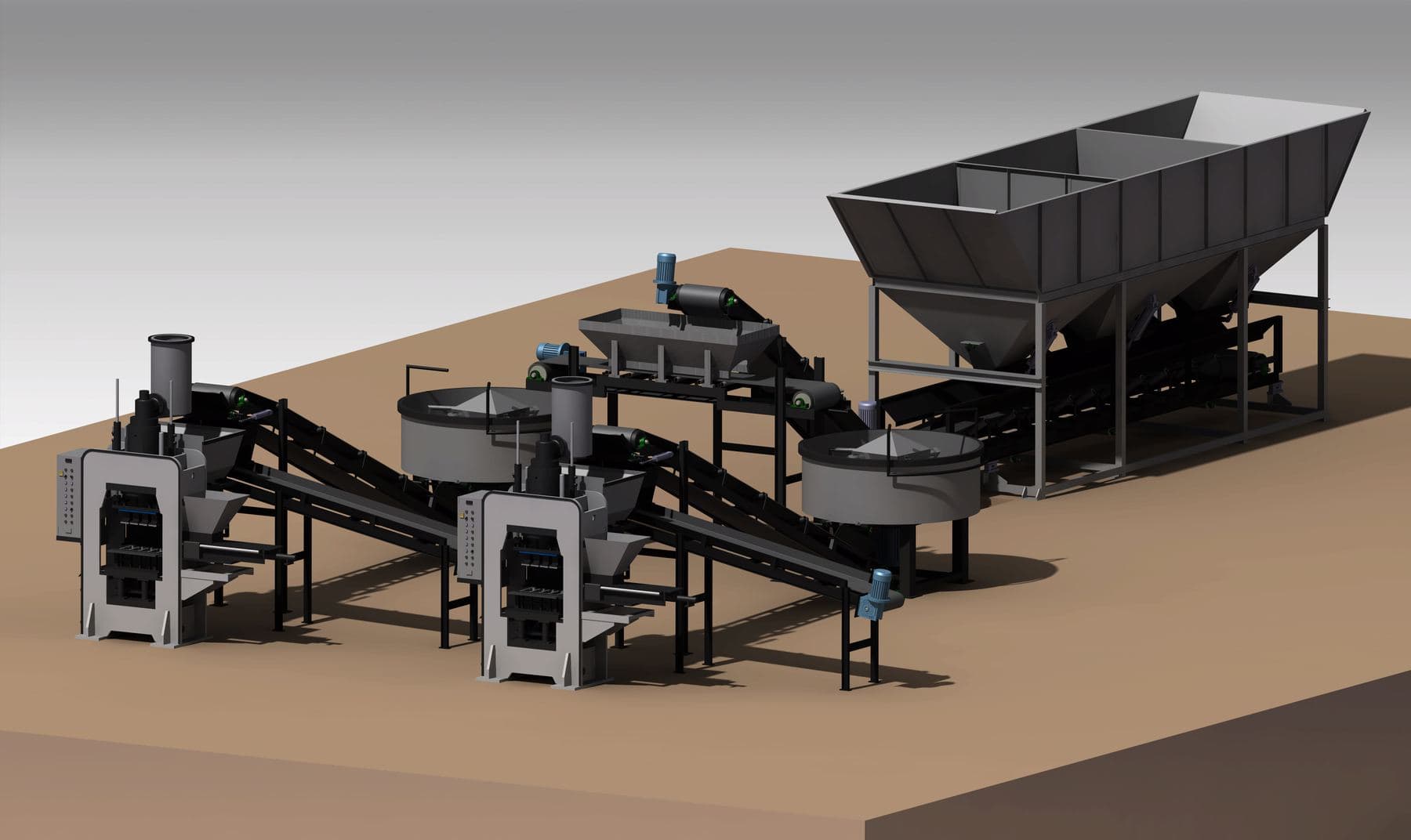

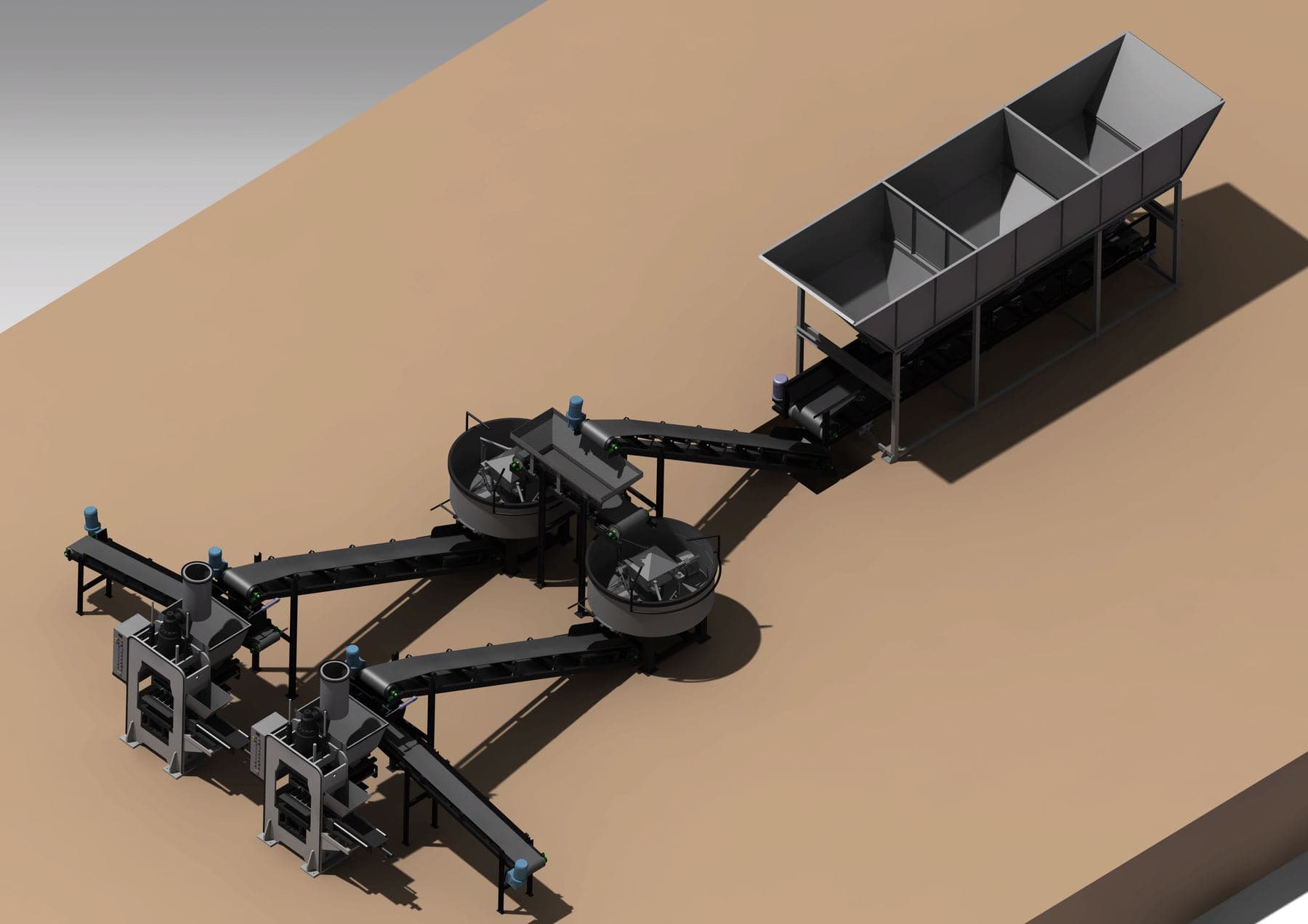

Our highest-force standard machine. A 150 tonf press and 40 HP supply make M50 grade pavers from a 3-cavity mould and 10,000 to 12,000 fly ash bricks per shift from a 4-cavity mould. It can be built as an all-in-one plant with a batching unit, or as a double production line.
- Bricks per shift
- 10,000–12,000
- Press force
- 150 tonf
- Power required
- 40 HP
- Manpower
- 5–6
Specification
- Bricks per shift
- 10,000–12,000
- Press force
- 150 tonf
- Power required
- 40 HP
- Brick mould
- 9 × 4 × 3 in, 4 cavity
- Paver mould
- 3 cavity
- Manpower
- 5–6
- Shed (minimum)
- 40 × 30 × 18 ft high
- Pit
- 8.6 × 5.0 m, 700 mm deep
What's included
The supply list comes with your quotation.
Plus the standard plant layout for your site.
You arrange
- Civil work
- All electrical work
- All plumbing work
- Raw material, hydraulic oil, and an air compressor if required
- GST, transport, loading and unloading of the machinery
- Extra training
- Food, travel and stay for our installation and maintenance team

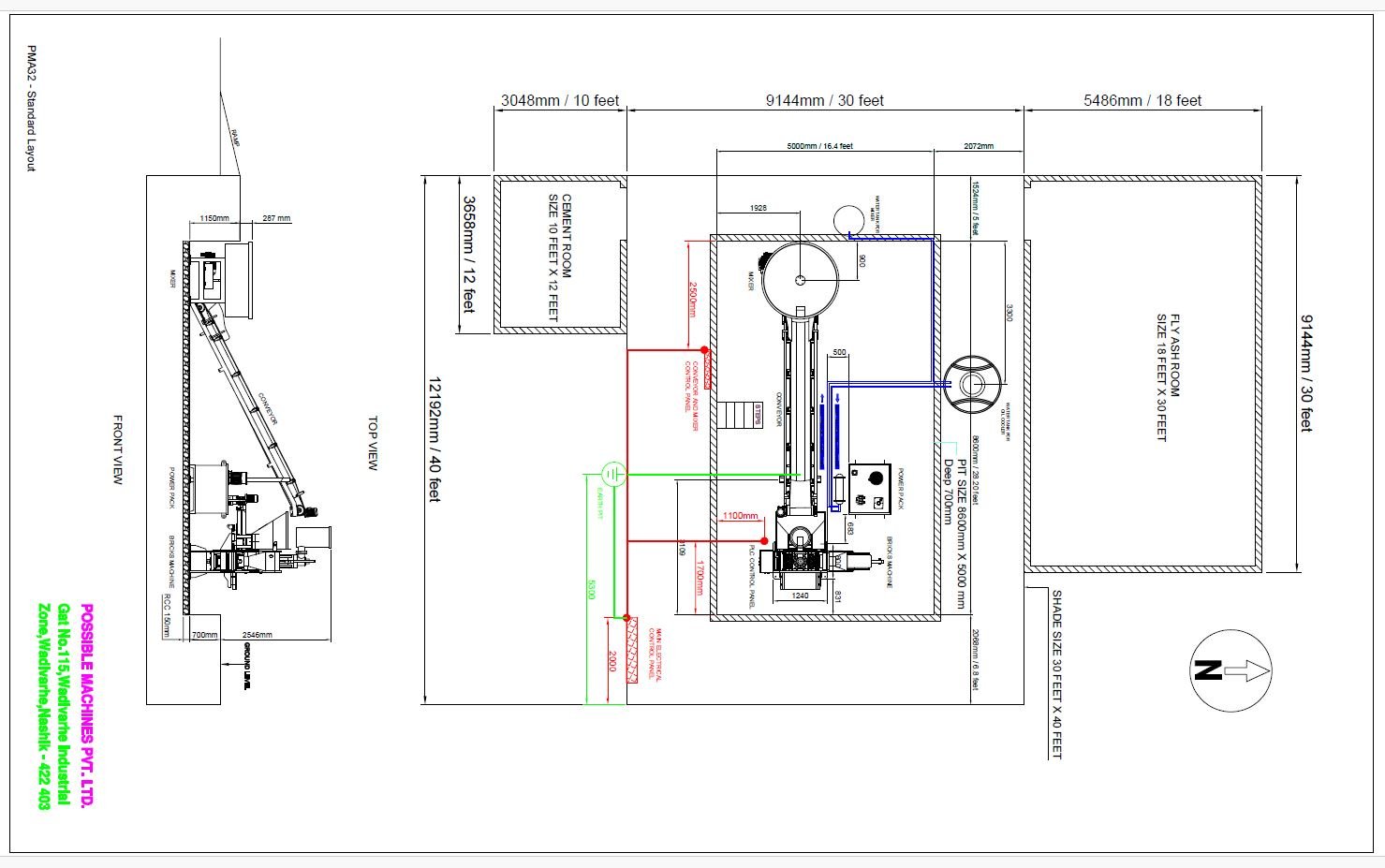

Standard plant layout
Every PMA32 M50 comes with this drawing. It sets the press in a pit beside the mixer, conveyor, power pack and control panels, with a cement room and a fly ash room alongside.
- Shed
- 30 × 40 ft
- Pit
- 8.6 × 5.0 m, 700 mm deep
- Cement room
- 10 × 12 ft
- Fly ash room
- 18 × 30 ft

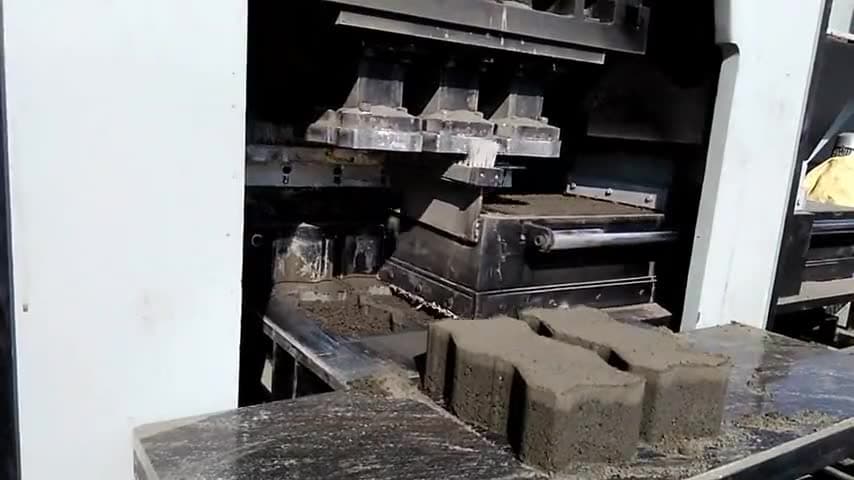

See the PMA32 M50 running
Gallery
Compare the range
| Model | Bricks per shift | Pavers per shift | Press force | Power required |
|---|---|---|---|---|
| PM16 | 5,000–6,000 | No | 30 tonf | 24–25 HP |
| PM24 | 8,000–10,000 | No | 45 tonf | 27 HP |
| PM32 | 10,000–12,000 | No | 60 tonf | 27 HP |
| PM40 | On request | No | On request | On request |
| PM48 | On request | No | On request | On request |
| PMA24 | 8,000–10,000 | 3,000–4,000 | 60–72 tonf | 27 HP |
| PMA32 | 10,000–12,000 | 4,000–5,000 | 60–72 tonf | 27 HP |
| PMA24 M50 | 8,000–10,000 | No | 100 tonf | 35 HP |
| PMA32 M50 | 10,000–12,000 | No | 150 tonf | 40 HP |
Questions about the PMA32 M50
How many bricks does the PMA32 M50 make?
10,000–12,000 fly ash bricks per shift with the 9 × 4 × 3 in, 4 cavity mould.
How much space does the PMA32 M50 need?
Plan for a shed of at least 40 × 30 × 18 ft high, a pit of 8.6 × 5.0 m, 700 mm deep, a 10 × 12 ft cement room and an 18 × 30 ft fly ash room. We send the standard layout drawing for your site.
What power does the PMA32 M50 need?
40 HP in total. Electrical work up to the machine is done by you.
How many people run it?
A crew of 5–6, working from the programmed PLC control panel.
What do I need to arrange?
Civil work; All electrical work; All plumbing work; Raw material, hydraulic oil, and an air compressor if required; GST, transport, loading and unloading of the machinery; Extra training; Food, travel and stay for our installation and maintenance team.
Can I see the PMA32 M50 working?
Watch the videos on this page, or visit our works at Gut No 115, Wadivarhe, Wadiwarhe Dam, Igatpuri, Nashik 422403. Call 080 4754 9587 to fix a time.
